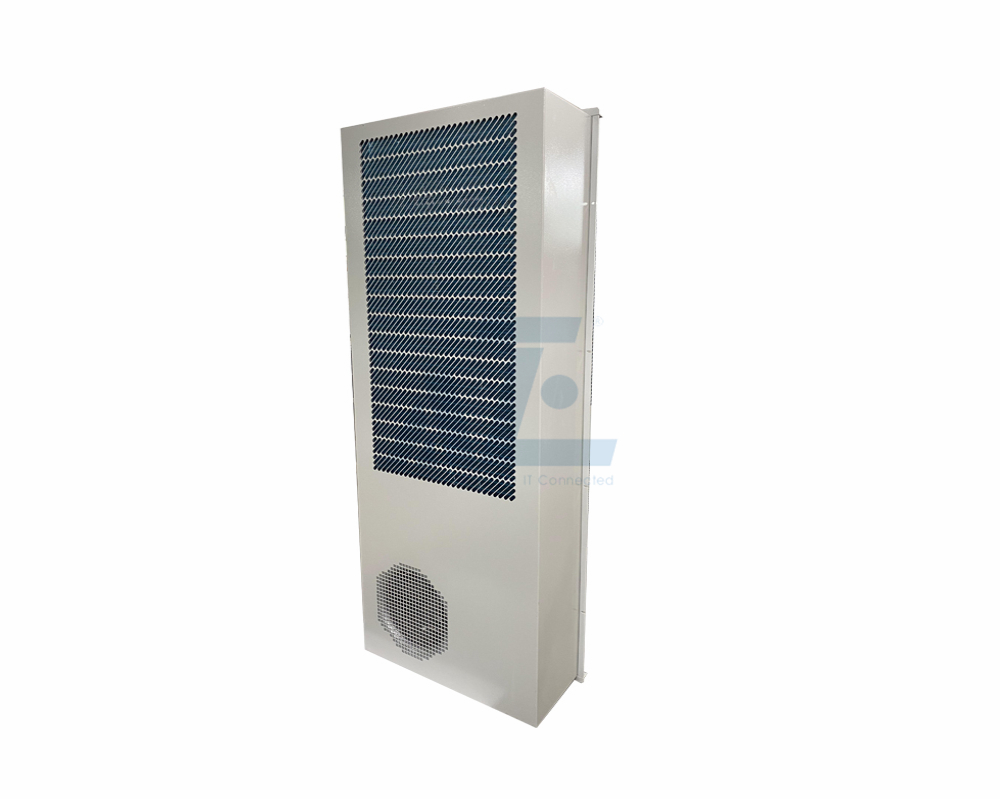

AZE's AC or DC powered cabinet and enclosures air conditioner is designed for outdoor climate control applications. It provides a suitable temperature environment to ensure the service life of the equipment in the cabinet. It can work immediately after power on with complete functions, high reliability, simple installation and without complicated debugging.
- AC110V,AC220V power supply or DC48V power supply
- Models with 800 to 20,000 BTUs/Hr cooling capacity for indoor, outdoor, and harsh environments
- Available with dust-resistant coil design for filterless operation in most environments
- Built-in flanges for easy installation
- Our team will help you find the ideal cooling solution from our standard cooling configurations
AZE company provides enclosures air conditioners, they are highly efficient specifically designed for the cooling needs of electrical enclosures. They are available as IP54 for indoor applications, and IP55 for outdoor applications. Air Conditioning is required when the internal temperature is required to be lower than ambient temperature and for high heat loads.AZE company air conditioners are designed for dissipation of heat from inside NEMA rated electrical enclosures and IP rated data racks. Air conditioning is based on the heat exchange between two separate air circuits. Air circulation inside the enclosure is separated from external ambient air, protecting the contents of the enclosure from dust and moisture. In the first circuit, heated air is circulated from inside the enclosure to the air conditioning unit and returns chilled into the enclosure. In the second circuit, ambient air circulates from outside the enclosure to the air conditioning unit and returns to outside. The air conditioner digital thermostat is factory set at 35°C and is adjustable from -40°C to 55°C(adding the PTC heaters). The evaporator fan operates continuously to circulate internal air, ensuring a uniform distribution of temperature inside the cabinet, preventing hot spots. When the temperature inside of the enclosure is higher than the set-point value, the refrigeration cycle starts. When the internal temperature decreases below set point value, the refrigeration cycle stops. To ensure efficient flow and to prevent flow being directed at active components, a flow diverter accessory should be used. To prevent dirt and dust from entering the air conditioner internal components, an air conditioner filter may be fitted.
AZE company's enclosures Air Conditioners are provided with a built-in digital thermostat providing the following functionality:
- Set temperature of compressor start
- Set temperature of compressor shutdown
- Set delay on/off of compressor in terms of temperature
- Set time of compressor to avoid intermittent on/off
- Set maximum value for overcoming maximum temperature in the cabinet, after which thermostat emits an alarm
- Set delay time of alarm switch
- Door interlock
- RS485 connection interface
Temperature Control Solution for Outdoor Telecom Enclosures
With the development of communication technology, the 5G era is approaching. For the communication,ISPs operator, a large number of communication base stations and outdoor communication cabinets need to be established. The temperature control of the electronic equipment in the cabinet is a problem that cannot be ignored, which directly affects the service life of the equipment and the stability of the communication network signal.
The electronic equipment in the communication cabinet generates a lot of heat during operation. If the heat cannot be discharged for a long time, causing the temperature in the cabinet to rise, it will reduce the life of the electronic components or even stop, and the entire network of the cabinet accessories will be disconnected, requiring personnel to be repaired, which wastes a lot of manpower and material resources. Therefore, temperature control products must be used to ensure the normal operation of the equipment and improve the service life and reliability of the equipment.
If the cabinet is located in an area with a cold environment, even in summer, the ambient temperature is more than ten degrees Celsius. We recommend using an air to air heat exchanger to control the temperature in the cabinet. It achieves the purpose of controlling the temperature inside the cabinet by exchanging the cold air outside the cabinet with the hot air inside the cabinet. Its advantages are low energy consumption, energy saving and environmental protection.
If the cabinet is located in an equatorial area with hot weather, the temperature in summer is as high as 40℃. We recommend using a cabinet air conditioner to control the temperature of the cabinet. The cabinet air conditioner adopts an integrated design, which uses compressors and refrigerants to generate cold air to cool the entire cabinet. Its advantage is accurate temperature control, and it can also effectively control the temperature of the cabinet in high temperature weather.
In order to meet the constant temperature environment in the base station, cooling in summer and heating in winter, the annual energy consumption for base station air conditioning is very huge. Energy saving, emission reduction, and cost reduction have increasingly become the focus of the telecom industry.
Climate control solution for Energy Storage Systems or Battery Storage Cabinet
Ambient temperature is one of the most important factors affecting battery life. The best ambient temperature of battery is 23~25°C.
Excessive ambient temperature has a great impact on the service life of the battery. When the temperature rises, the corrosion of the battery plate will increase, and more water will be consumed at the same time, which will shorten the battery life. The battery can be obtained in an environment of 25°C Longer service life, if the long-term operating temperature increases by 10°C, the service life will be reduced by about half.
The high coolling capactiy air-cooled integrated air conditioners are specially designed for energy storage systems. For the special requirements of battery temperature control and installation space of the containerized energy storage system, the integrated structure, large air volume, and top air supply design are adopted to provide a safe, reliable, efficient and energy-saving precision temperature control solution for the energy storage system.
CABINET ENERGY STORAGE
The rack-type energy storage system supports user-side energy response scheduling and remote duty operation and maintenance, supports parallel/off-grid operation, and can be widely used in data centers, communication base stations, charging stations, small and medium-sized distributed new energy power generation and other scenarios. Tailored for peak shaving and valley filling, capacity reduction and distribution increase, smooth fluctuation, power quality improvement, emergency power supply and power dispatching operation.
CONTAINERIZED ENERGY STORAGE
The large-scale power storage system is the support for the reliable operation of the power grid. It plays an important role in adjusting the load curve, shaving peaks and filling valleys, improving the utilization efficiency of distribution network equipment and lines, participating in power grid frequency regulation, and improving the power supply level of large power grids.
Our team can assist in calculating the perfect solution based upon variables such as environmental challenges, climates, and the sensitivity of the electronics/hardware being housed.
AZE company's enclosure air conditioners provide greater operating efficiency, lower power consumption and longer life for heat sensitive electrical components. The enclosure cooling unit helps to cool, dehumidify, and recirculate clean air within the electrical cabinet and through the heat producing components, providing protection from high temperatures, humidity and airborne contaminants. We proudly offer the industry's most extensive selection of enclosure air conditioners in numerous sizes and mounting configurations with capacities ranging from 1,000 to 20,000 BTU/H.
Choosing the right industrial air conditioning system is easier than ever. Rely on AZE's experts and tools for guidance for your specific project.
