1U Rack Mount 17" 8 Port FHD LCD KVM Console 1080P
Model:RMCON1708W
AZE's 8 port rack mount KVM console mounts 1U rack space of server rack or cabinet, it can provide centralized control of your PC, server, or KVM switch, this 8 port rackmount KVM console gives you easy access to your connected system. This 8 port LCD KVM Switch features an integrated 17.3" LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to KVM Switches.
- Standard VGA connector (8 Port)
- 17.3inch LCD Monitor
- 17.3" LCD screen support resolution up to 1920x1080@60Hz
- Provides 2-level password security (Administrator and User)
- A single console controls up to 256 computers by cascading
- Cable & Mounting Hardware Included
Overview
AZE's RMCON1708W 1U LCD KVM Switch features an integrated 17.3" LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 pcs 8 port rack mount KVM Switches.
The 8 Port LCD KVM Console has a built-in LCD monitor that supports resolution up to 1920x1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).
The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.
Connection Diagram
Hardware Features
- Integrated KVM Console with 17.3" LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
- Standard VGA connection-Connect to a server or computer via standard VGA connectors
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support external USB & PS/2 keyboard and mouse
High Resolution
- 17.3" TFT LCD KVM with monitor supports highlight, high definition and high resolution
- Support input video resolutions up to 1920 x 1080 @60Hz
Management
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
Daisy-Chain Connection
- By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console (Compatible our rack KVM Switches)
Security
- Two level password security--only authorized users view and control computers
- Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
Specification
| KVM Type | |
| IP Control | No |
| Computer Connections | |
| Direct | 8 |
| Maximum | 256(via Daisy-chain) |
| Port Selection | On-screen-display (OSD),Hotkey,Pushbutton |
| Emulation(Keyboard / Mouse) | PS/2,USB |

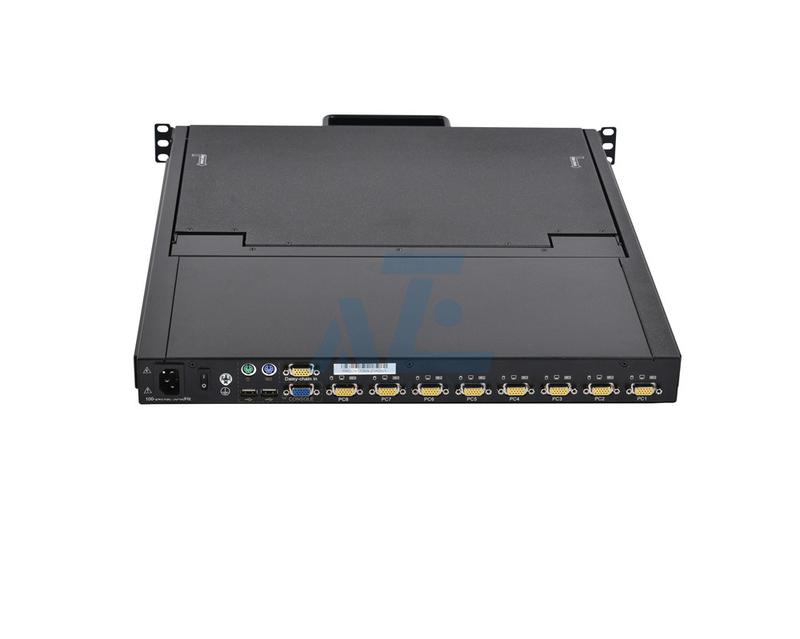

| Connectors | |
| KVM Ports | 8 |
| Daisy Chain Ports | 1 x DB-25 Male |
| Power | 1 x IEC 60320/C14 |
| External Console Ports | 1 x SPHD Male (Blue) |
| External Mouse Port | 1 x USB Type A Female |
| USB Port | 1 x USB Type A Female |
| Power | |
| Maximum Input Power Rating | 100V~ 240Vac , 50~60Hz; <1.5A |
| Power Consumption (In Watts) | 16W |
| LCD Monitor | |
| LCD Module | FHD TFT |
| Display Size | 17.3" |
| Resolutions | 1920×1080@60Hz |
| Display Color | 262K |
| Contrast Ratio | 800 : 1 (Typ) |
| Luminance | 300cd/m²(Typ) |
| Pixel Pitch Support(mm) | 0.1989(H) × 0.1989(W) |
| Keyboard | |
| Keyboard | 99 keys(82 keys main keyboard +17 independent small numeric keyboard) |
| Mouse | |
| X/Y resolution | >1000 points / inch,(40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function(Eliminates the need for a separate, external mouse) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH |
| Physical | |
| Color | Black |
| Housing | Metal |
| Rail Type | Single Rail |
| Unit Dimensions (WxDxH) | 17.64inches x 22.05inches x 1.67inches /448mm x 560mm x 42.5mm |
| Unit Weight | 25.57lbs./11.6 Kgs |
| Shipping Dimensions(WxDxH) | 24.21inches x 30.12inches x 7.28inches /615mm x 765mm x 185mm |
| Shipping Weight | 37.45lbs./17 Kgs |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | LCD Monitor Size | Number of Computers | Computer Interface | Resolution | Description | Application |
| RMCON1701 | 17" | 1 | VGA | 1280x1024 | 1U Single Port 17" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708 | 17" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1716 | 17" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-17inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1901 | 19" | 1 | VGA | 1280x1024 | 1U Single Port 19" Single Rail LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1908 | 19" | 8 | VGA | 1280x1024 | 1U Rackmount 8 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1916 | 19" | 16 | VGA | 1280x1024 | 1U Rackmount 16 Port KVM Console for Server Rack-19inch | Server Room,Data Center,Telecom,Traffic |
| RMCON1601W | 15.6" | 1 | VGA | 1920x1080 | 1U Single Rail 15.6" Widescreen LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1604W | 15.6" | 4 | VGA | 1920x1080 | 1U Single Rail 4 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1608W | 15.6" | 8 | VGA | 1920x1080 | 1U Single Rail 8 Port 15.6" FHD LCD KVM Console,Ultra Short Depth | Server Room,Data Center,Telecom,Traffic |
| RMCON1701W | 17.3" | 1 | VGA | 1920x1080 | 1U Rack Mount 17.3" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708W | 17.3" | 8 | VGA | 1920x1080 | 1U Rackmount 17.3" 8 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1716W | 17.3" | 16 | VGA | 1920x1080 | 1U Rackmount 17.3" 16 Port FHD LCD KVM Console 1080P | Server Room,Data Center,Telecom,Traffic |
| RMCON1801W | 18.5" | 1 | VGA | 1920x1080 | 1U Rack Mount 18.5" FHD LCD Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1808W | 18.5" | 8 | VGA | 1920x1080 | 1U 8 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1816W | 18.5" | 16 | VGA | 1920x1080 | 1U 16 Port 18.5" Widescreen LCD KVM Switch | Server Room,Data Center,Telecom,Traffic |
| RMCON1801VDHP | 18.5" | 1 | VGA/HDMI/DVI/HP | 1920x1080 | 1U Rackmount 18.5" Widescreen LCD Console(VGA/HDMI/DVI/HP) | Server Room,Data Center,Telecom,Traffic |
-
Shipping Option: Assembly unit
-
LCD KVM Console or KVM over IP Switches available
-
A wide range of KVM Switch accessories compatablity
-
Besides KVM Switches, Server rack enclosure , Colocation server cabinet, Server Rack PDUs and Outdoor Enclosures available.
