Model:RMIPCON1732WR2

Featuring an integrated 17.3" LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, AZE's Cat5 LCD KVM over IP Switch is a control unit that allows 2 remote users secure access to 32 computers from a single KVM console.  IP KVM console is designed to ease multi-server management in data centers, server rooms and other high-density environments,it provides secure IP remote access to connected servers/computers via LAN, WAN or Internet without requiring additional rack space.

  • 1 Local / 2 Remote User
  • 32 Port CAT5 RJ45 Connectors
  • 1920 x 1080 @60Hz
  • 1U Console KVM Switch with built-in IP access - integrated 17.3 in. LCD monitor, keyboard and touchpad.
  • Remotely access computers via LAN, WAN or Internet via the Windows or Java browser clients.
  • KVM Cable and CAT5E Cable Included
  • Convenient computer switching via front panel LED, OSD menu and mouse
  • Easily installed and minimizes support and maintenance costs, ensuring lower cost of ownership

Overview

AZE's 17.3" FHD 32 port Cat5 IP KVM console features an integrated 17.3" LCD monitor and keyboard with a built-in touchpad in a 1U compact rack-mountable drawer, it is the ideal solution for controlling up to 32 computers/servers locally, or remotely via LAN, WAN, or Internet.

This 17.3" 32 port IP KVM switch can be accessed and controlled at the local console and remote over IP access using the web-based browser or windows-based client. In addition, AZE also offers an IP receiver for remote access to this IP KVM console directly, it supports freely switching between local and your remote computer, no need for remote access to the device via the web-based browser.

In order to help you control and manage an entire data center, the range KVM over IP switch comes with a Centralized Management Software – KCMS, allowing administrators to remotely manage and control all the devices on a network. The KCMS records all operations on servers accessed through the IP KVM switch.

The IP KVM switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.

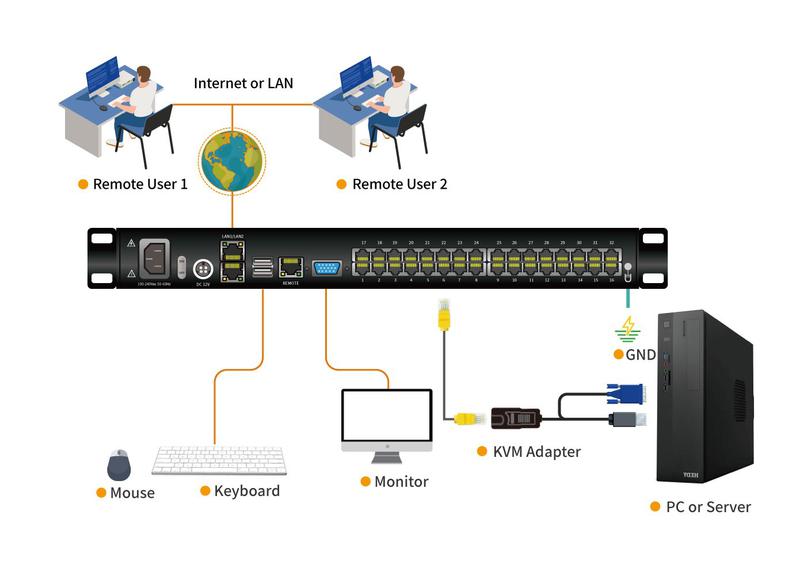

Connection Diagram



Hardware Features

  • Integrated LCD KVM console with 17.3" LCD monitor, keyboard/touchpad in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
  • Dual power supply
  • Two bus for IP KVM remote access

Local Console

  • Controls up to 32 computers from a single console
  • Support 1 local user and 2 remote user, port share mode allows local and remote users to gain access to a server simultaneously
  • Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
  • Support servers with VGA/DVI/HDMI/DP port
  • Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
  • Local Console, Browser, and AP GUIs offer a unified management interface
  • Local resolution is up to 1920 x 1080 @60Hz
  • Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
  • Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
  • Keyboard and mouse emulation to ensure the normal booting
  • Auto scan feature for monitoring user-selected computer
  • Hot pluggable--add or remove computers without having to power down the switch

Remote Console

  • Adaptive 10 / 100 / 1000 Mbps network
  • WEB browser-based remote management
  • Resolution for remote console is up to 1920x1080 60Hz
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
  • Full screen or scalable video display
  • Remote users and local users can control the same server/computer synchronously
  • Support AES / DES / 3DES encryption
  • Support audit function-allows the administrator to audit the device through the system log and operation log
  • Exit Macros support
  • Configurable user and group permissions for server access and control
  • Support strong password
  • Support firmware upgrade

Specification

KVM Type
IP Control Yes,1-Local / 2-Remote

Computer Connections
Direct 32
Maximum 32
Port Selection Pushbutton, UI, Web, Hotkey

Connectors
KVM Ports 32 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
External Console Ports 1 x SPHD Male (Blue)
External Mouse Port 1 x USB Type A Female
USB Port 1 x USB Type A Female
Power  1 x IEC 60320/C14

Power
Maximum Input Power Rating 100V~ 240Vac , 50~60Hz; <1.5A
Power Consumption (In Watts) 29W

LCD Monitor
LCD Module FHD TFT
Display Size 17.3"
Resolutions 1920×1080@60Hz
Display Color 262K
Contrast Ratio 800 : 1 (Typ)
Luminance  300cd/m²(Typ)
Pixel Pitch Support(mm) 0.1989(H) × 0.1989(W)

Keyboard
Keyboard 99 keys(82 keys main keyboard +17 independent small numeric keyboard)

Mouse
X/Y resolution >1000 points / inch,(40 points/mm)
Touchpad with Scroll wheel Support scroll wheel function(Eliminates the need for a separate, external mouse)

Remote
Remote Control KVM Control(ActiveX)
Management Web
Security DES Encrypted
Resolution 1920×1080@60Hz

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 10 ~ 80% RH

Physical
Color Black
Housing Metal
Rail Type Single Rail
Unit Dimensions (WxDxH) 17.64inches x 22.05inches x 1.67inches /448mm x 560mm x 42.5mm
Unit Weight 26lbs./11.8Kgs
Shipping Dimensions(WxDxH) 24.21inches x 30.12inches x 7.28inches /615mm x 765mm x 185mm
Shipping Weight  39.67lbs./18 Kgs

Warranty
Standard warranty 1 Year

How to Order

Model Console Connections  LCD Monitor Size Number of Computers Computer Interface Resolution Description Application
RMIPCON1708R2 1-Local / 2-Remote 17" 8 RJ-45 1280x1024 1U Rackmount 17" 8 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1716R2 1-Local / 2-Remote 17" 16 RJ-45 1280x1024 1U Rackmount 17" 16 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1724R2 1-Local / 2-Remote 17" 24 RJ-45 1280x1024 1U Rackmount 17" 24 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1732R2 1-Local / 2-Remote 17" 32 RJ-45 1280x1024 1U Rackmount 17" 32 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1908R2 1-Local / 2-Remote 19" 8 RJ-45 1280x1024 1U Rackmount 19" 8 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1916R2 1-Local / 2-Remote 19" 16 RJ-45 1280x1024 1U Rackmount 19" 16 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1924R2 1-Local / 2-Remote 19" 24 RJ-45 1280x1024 1U Rackmount 19" 24 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1932R2 1-Local / 2-Remote 19" 32 RJ-45 1280x1024 1U Rackmount 19" 32 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1708WR2 1-Local / 2-Remote 17.3" 8 RJ-45 1920x1080 1U Rackmount 17.3" 8 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1716WR2 1-Local / 2-Remote 17.3" 16 RJ-45 1920x1080 1U Rackmount 17.3" 16 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1724WR2 1-Local / 2-Remote 17.3" 24 RJ-45 1920x1080 1U Rackmount 17.3" 24 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1732WR2 1-Local / 2-Remote 17.3" 32 RJ-45 1920x1080 1U Rackmount 17.3" 32 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1808WR2 1-Local / 2-Remote 18.5" 8 RJ-45 1920x1080 1U Rackmount 18.5" 8 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1816WR2 1-Local / 2-Remote 18.5" 16 RJ-45 1920x1080 1U Rackmount 18.5" 16 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1824WR2 1-Local / 2-Remote 18.5" 24 RJ-45 1920x1080 1U Rackmount 18.5" 24 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
RMIPCON1832WR2 1-Local / 2-Remote 18.5" 32 RJ-45 1920x1080 1U Rackmount 18.5" 32 Port CAT5 LCD KVM over IP Switch, 1-Local / 2-Remote Access Server Room,Data Center,Telecom,Traffic
