1U 16 Port USB HDMI 19" LCD KVM Console
Model:RMCON1916HDMI
AZE's 16 port rack mount KVM console mounts 1U rack space of server rack or cabinet, it can provide centralized control of your PC, server, or KVM switch, this 16 port rackmount KVM console gives you easy access to your connected system. This 16 port LCD KVM Switch features an integrated 19" LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to KVM Switches.
- Standard HDMI connector (16 port)
- 19inch LCD Monitor
- 19" LCD screen support resolution up to 1280x1024@60Hz
- Provides 2-level password security (Administrator and User)
- A single console controls up to 512 computers by cascading
- Cable & Mounting Hardware Included
Overview
AZE's RMCON1916HDMI 1U LCD KVM Switch features an integrated 19" LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to 31pcs rack mount KVM Switches.
The 16 Port LCD KVM Console has a built-in LCD monitor that supports resolution up to 1280x1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).
The KVM switch supports USB connection for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

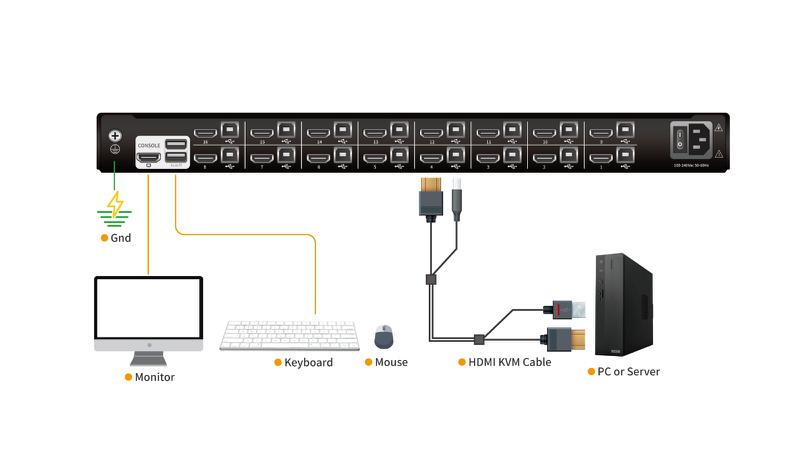

Connection Diagram
Hardware Features
- Integrated KVM Console with 19" LCD monitor, keyboard/touchpad and 8 port HDMI KVM switch in a 1U height console
- Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB keyboard and mouse
Management
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
High Resolution
High Resolution
- 19" TFT LCD KVM with monitor supports highlight, high definition and high resolution
- Support input video resolutions up to 1280 x 1024 @60Hz
Daisy-Chain Connection
- By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console (Compatible our rack KVM Switches)
Security
- Two level password security--only authorized users view and control computers
- Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
Specification
| KVM Type | |
| IP Control | No |
| Computer Connections | |
| Direct | 16 |
| Maximum | 16 |
| Port Selection | On-screen-display (OSD),Hotkey,Pushbutton |
| Emulation(Keyboard / Mouse) | USB |
| Connectors | |
| KVM Ports | 16 x HDMI Female + 16 x USB Type B Female |
| Power | 1 x IEC 60320/C14 |
| External Console Ports | 1 x HDMI Female |
| External Mouse Port | 1 x USB Type A Female |
| USB Port | 1 x USB Type A Female |
| Power | |
| Maximum Input Power Rating | 100V~ 240Vac , 50~60Hz; <1.5A |
| Power Consumption (In Watts) | 25W |
| LCD Monitor | |
| LCD Module | SXGA TFT LCD |
| Display Size | 19" |
| Resolutions | 1280×1024@60Hz |
| Display Color | 16.7M colors |
| Contrast Ratio | 1000 : 1 (Typ) |
| Luminance | 250cd/m²(Typ) |
| Pixel Pitch Support(mm) | 0.2928(H) × 0.2928(W) |
| Keyboard | |
| Keyboard | 99 keys(82 keys main keyboard +17 independent small numeric keyboard) |
| Mouse | |
| X/Y resolution | >1000 points / inch,(40 points/mm) |
| Touchpad with Scroll wheel | Support scroll wheel function(Eliminates the need for a separate, external mouse) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH |
| Physical | |
| Color | Black |
| Housing | Metal |
| Rail Type | Single Rail |
| Unit Dimensions (WxDxH) | 17.64inches x 23.82inches x 1.67inches /448mm x 605mm x 42.5mm |
| Unit Weight | 29.97lbs./13.6Kgs |
| Shipping Dimensions(WxDxH) | 24.21inches x 30.12inches x 7.28inches /615mm x 765mm x 185mm |
| Shipping Weight | 41.88lbs./19 Kgs |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | LCD Monitor Size | Number of Computers | Computer Interface | Resolution | Description | Application |
| RMCON1701HDMI | 17" | 1 | HDMI | 1280x1024 | 1U Rackmount 17" HDMI LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708HDMI | 17" | 8 | HDMI | 1280x1024 | 1U 8 Port USB HDMI 17" LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1716HDMI | 17" | 16 | HDMI | 1280x1024 | 1U 16 Port USB HDMI 17" LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1901HDMI | 19" | 1 | HDMI | 1280x1024 | 1U Rackmount 19" HDMI LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1908HDMI | 19" | 8 | HDMI | 1280x1024 | 1U 8 Port USB HDMI 19" LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1916HDMI | 19" | 16 | HDMI | 1280x1024 | 1U 16 Port USB HDMI 19" LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1701WHDMI | 17.3" | 1 | HDMI | 1920x1080 | 1U Rackmount 17.3" widescreen HDMI LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1708WHDMI | 17.3" | 8 | HDMI | 1920x1080 | 1U 8 Port USB HDMI 17.3" widescreen LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1716WHDMI | 17.3" | 16 | HDMI | 1920x1080 | 1U 16 Port USB HDMI KVM Switch with 17" widescreen LCD Display | Server Room,Data Center,Telecom,Traffic |
| RMCON1801WHDMI | 18.5" | 1 | HDMI | 1920x1080 | 1U Rackmount 18.5" widescreen HDMI LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1808WHDMI | 18.5" | 8 | HDMI | 1920x1080 | 1U 8 Port USB HDMI 18.5" widescreen LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
| RMCON1816WHDMI | 18.5" | 16 | HDMI | 1920x1080 | 1U 16 Port USB HDMI 18.5" widescreen LCD KVM Console | Server Room,Data Center,Telecom,Traffic |
-
Shipping Option: Assembly unit
-
LCD KVM Console or KVM over IP Switches available
-
A wide range of KVM Switch accessories compatablity
-
Besides KVM Switches, Server rack enclosure , Colocation server cabinet, Server Rack PDUs and Outdoor Enclosures available.
