Wire Mesh Cable Tray for Data Center Aisle Containment
Model:Wire Mesh Cable Tray
The wire mesh cable tray designed by AZE, includes indoor and outdoor use widely used in installation cable in different telecommunication houses, electricity units and engineering project. Easy to install,excellent cable ventilation,energy saving,easy for maintenance and update.Surface Treatment: 3 finishes for carbon steel, Electro zinc (EZ) for indoor use, hot dip galvanized (HDG) for outdoor use, also powder coated(PC) (colors up to customer). Acid washing then polished for stainless steel.
- Material: carbon steel (Q235B), stainless steel ( 304L / 316L ).
- Easy installation and labor-saving.
- On-site fabrication.
- Excellent ventilation.
- Maximum strength for minimum weight.
- Reduce dust retention and improve hygiene of the working environment.
- Environmental protection, passed Rohs test.
- Ideal for routing and supporting cables throughout fiber cable networks.
- Customized design upon your request.
Overview
AZE Copper Cabling Systems, Keep Your IT Clean & Neat

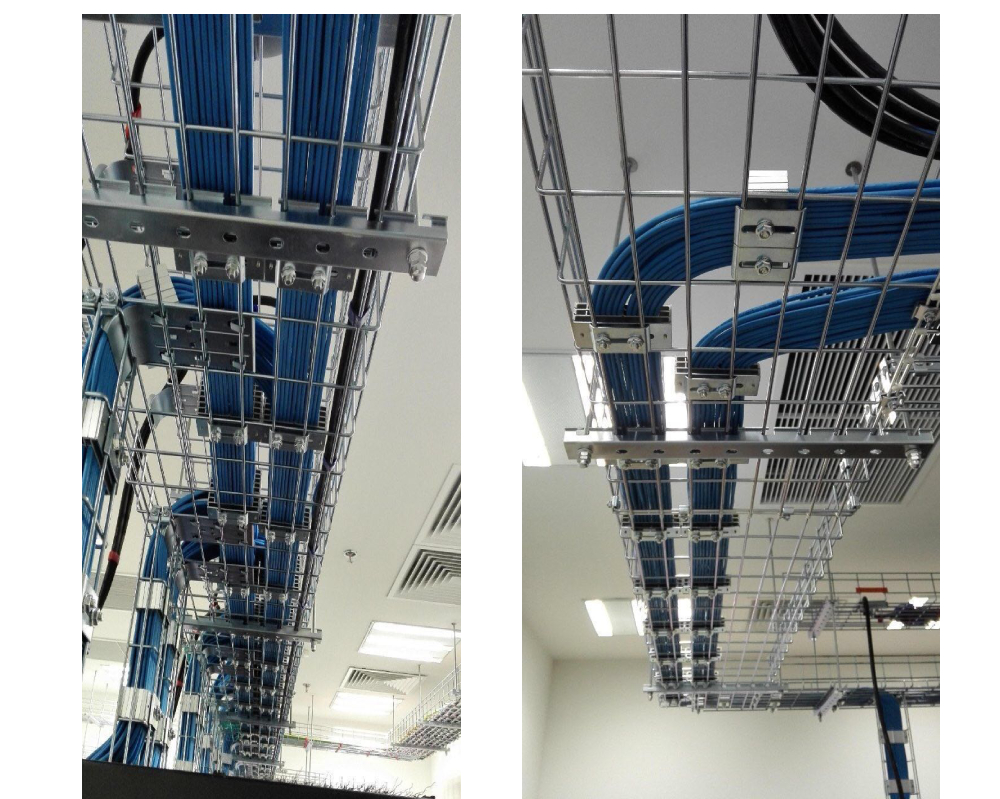

AZE Wire Mesh Cable Trays are constructed of precision engineered, high-quality, welded steel wire,they provide point-to-point pathways for network cabling in data centers, network equipment rooms and office spaces.Tested at every stage of the process, wire mesh cable trays from AZE have performed in a variety of applications from heavy power cable pathways on oil drilling platforms to electrical and data installations above ceiling and below floors in modern office buildings.
Specification
| Wire Mesh Cable Tray | Accessories |
| Electro Zinc (EZ) | Ceiling Mounting |
| Hot Dip Galvanized (HDG) | Wall Mounting |
| Powder Coated (PC) | Underfloor Mounting |
| Carbon Steel (Q235B) | Connector |
| Stainless Steel 304L | Cable Fixer |
| Stainless Steel 316L | Others |
| Materials & Surface Finish | |||
| Materials | Surface Finishing | Thickness of Coating | Application |
| Medium Carbon Steel | Electro zinc | ≥12μm | Indoor |
| Hot Dip galvanized | 60μm~100μm | Indoor & Outdoor | |
| Powder coated | 60μm~100μm | Indoor | |
| S304L | Acid washing polishing | N/A | Indoor & Outdoor |
| S316L | Acid washing polishing | N/A | High corrosion occasions |
How to Order
| Model | Dimension(WxDxH) | Description | Containment Components |
| RS48612W | 600mmx1200mmx48U | Data Center Server Rack Enclosure,48U 600mmWx1200mmD,Black or White Color option | Server Rack Enclosure |
| RS48612CL2W | 600mmx1200mmx48U | 2-Bay Colocation Server Rack Enclosure,48U 600mmWx1020mmD,Black or White Color option | |
| RS48612CL4 | 600mmx1200mmx48U | 4-Bay Colocation Server Rack Enclosure,48U 600mmWx1200mmD,Black or White Color option | |
| Basic Rack PDU | 0U/1U | Provide Reliable Power Distribution to multiple devices from a UPS system, generator or utility (mains) source. | Power Distibution( PDU) |
| Metered Rack PDU | 0U/1U | Provide real-time remote monitoring of connected loads. | |
| Switched Rack PDU | 0U/1U |
Provide real-time remote monitoring and remote on/off switching control and of individual outlets for power cycling, delayed power sequencing, and outlet use management. |
|
| MAC-MD1222 | 1200mm x 2200mm | Mechnical Aisle End Door, Toughened Glass,with TCP/IP door access locking system | Aisle Doors |
| MAC-SD1222 | 1200mm x 2200mm | Sliding Aisle End Door, Toughened Glass,with TCP/IP door access locking system | |
| MAC-RC0612 | 600mmx1200mm |
Modular Top Roof Ceiling Kits(included top roof, supporting bracket for top roof,external decoration panel) for the 600mmWide rack and 1200mmWide Aisle |
Aisle Roof Ceiling |
| RACABLETRAYM24 | 600mm | Power Cable trough for 24 in. enclosures | Top Cabling Accessories |
| RACABLETRAYN24 | 800mm | Data cable partition for 24 in. enclosures | |
| RACABLELADDER6IN3M | 6 inch x 3000mm | 6 in. Wide Cable Ladder, 1.5 meters per section, 2 sections per pair | |
| MAC-MONITORSYS | n/a |
Monitor systems for the aisle containment, including the network EMS unit(can provide the data collection, fire system and sound/light alarm and monitor the A/C, UPS, and power systems), software,10inch screen |
Monitor Systems |
| RASENSOR-TH | n/a | Sensor for the temperature and humidity in the aisle | Controllers & Sensors |
| RASENSOR-SM | n/a | Sensor for the smoke in the aisle | |
| RASENSOR-W | n/a | Sensor for the water in the aisle |
*********Notes**********
-
Shipping Option: Assembly unit or flat packed
-
2" castors or 3" HD castors optional for the server rack cabinets
-
White (RAL7035) or black(RAL9005) server rack enclosures available
-
A wide range of rack accessories compatablity
-
The server enclosures can be preconfigured without standard doors and side panels,more configurations are available please contact representative for more information
-
Server rack enclosure,Colocation Server Rack enclosure, Server Rack PDU,KVM Switches,Cables and Connectivity Cabling products available.
