Model:Optical Cable Tray

Optical cable tray is a system designed to protect and route fiber optic patch cords, cable assemblies to and from network cabinets, ODF and other terminal devices. Ducting offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.

  • High speed of installation
  • High speed of deployment
  • Raceway flexibility
  • Fiber protection
  • Strength and durability
  • Frame-retardant materials rated V0.
  • Tool-less products boast easy and quick installation including snap-on cover, hinged over option as well as quick exits.

Overview

AZE Fiber Cabling Systems, Keep Your IT Clean & Neat

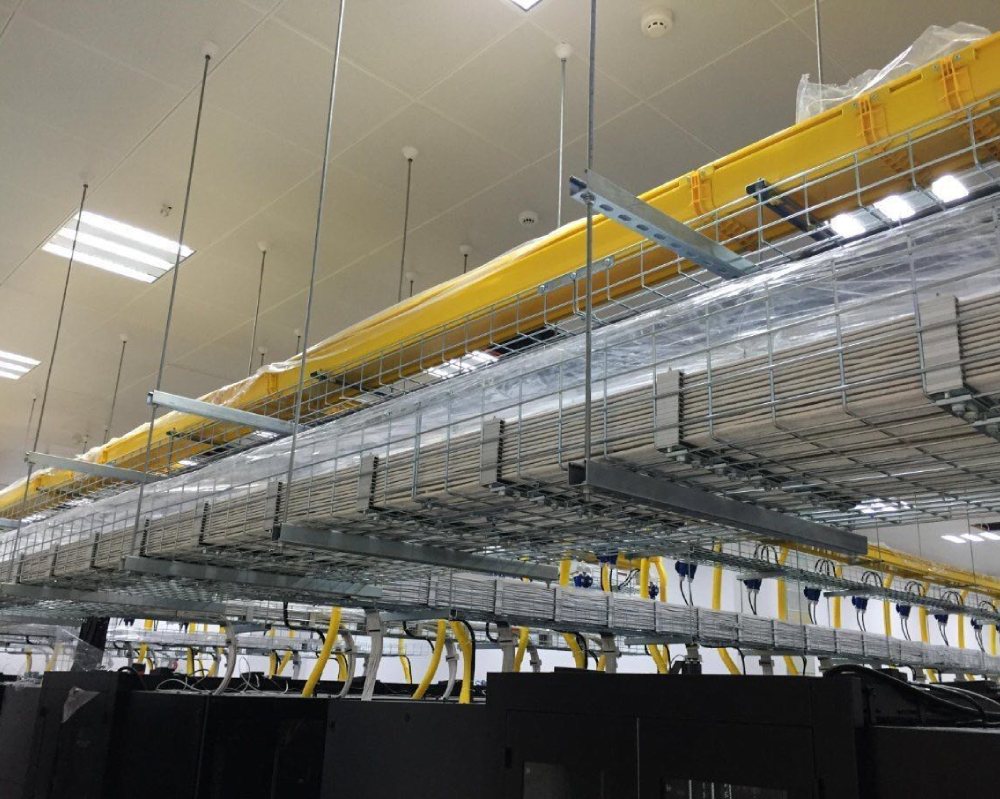

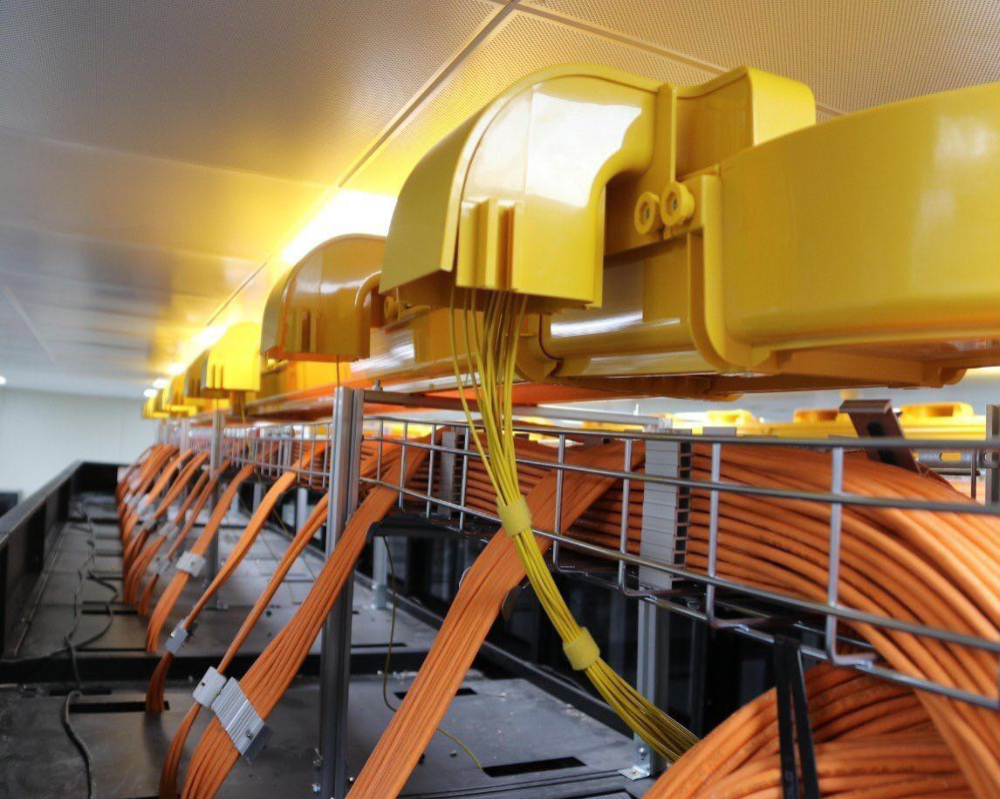

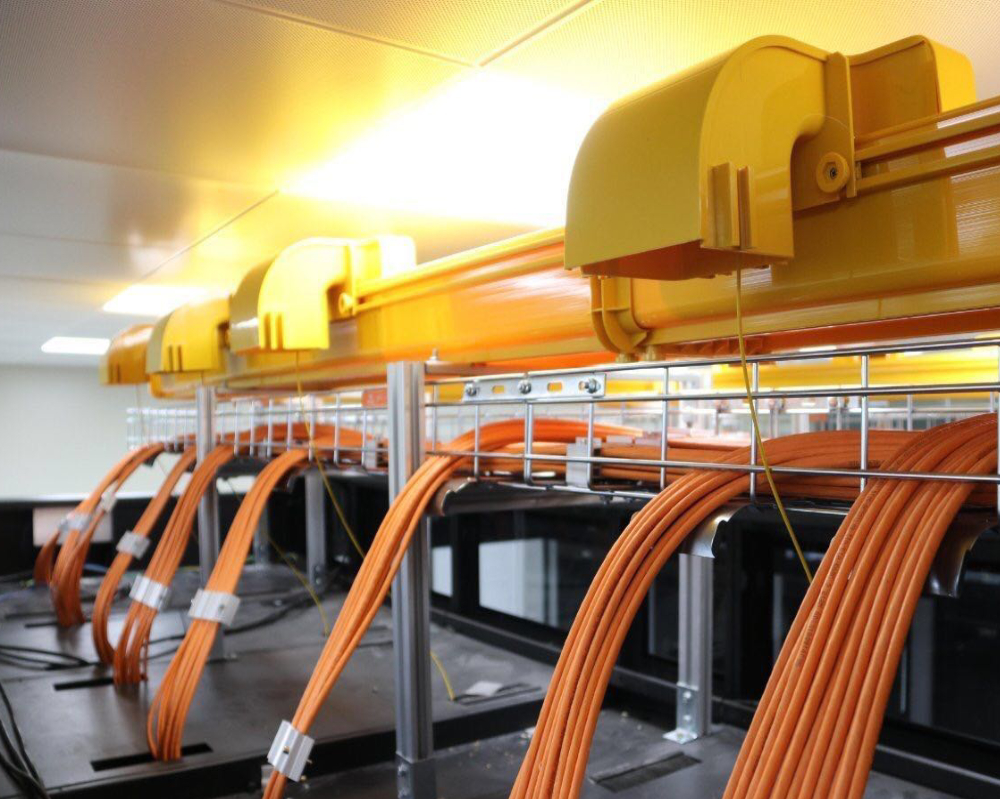

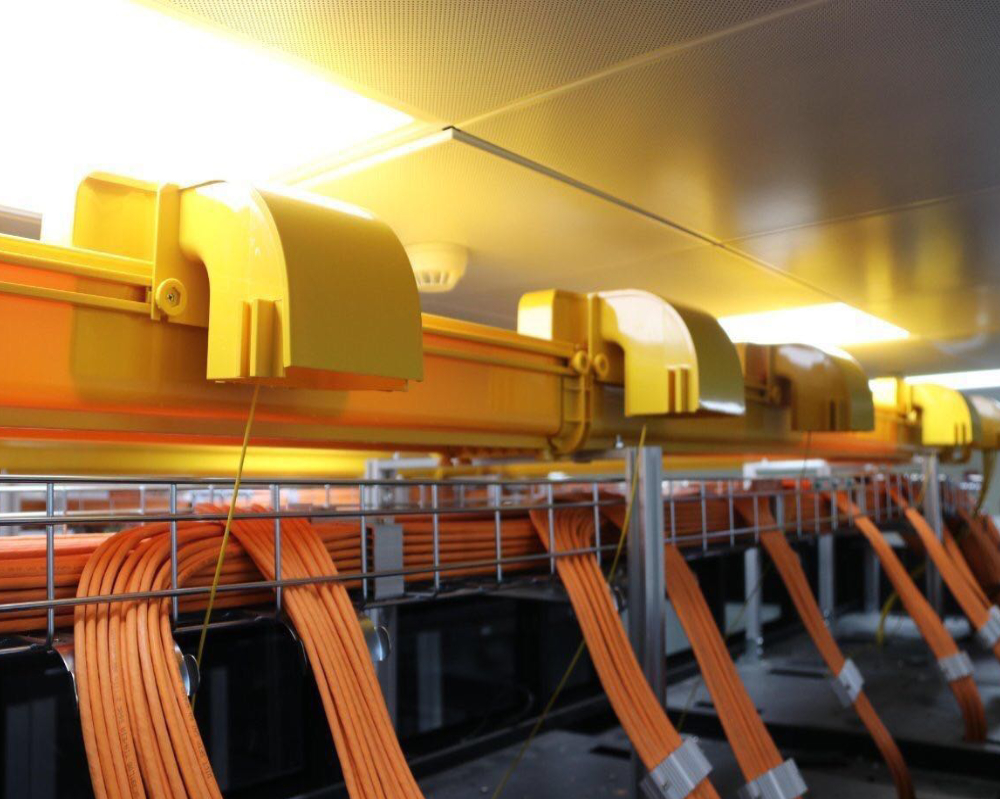

AZE Fiber-optic raceway system that routes and protects cabling in your data center. Suspended from the ceiling, this innovative raceway allows you to take the most direct path from one end of your data center to the other, and facilitates the addition, removal or replacement of fiber cables.

Easy to design and simple to install, this fiber solution requires no special tools to deploy and features myriad fittings, support structures, drop options, bends and straight sections to accommodate your data center's exact size.









Specification

Capacity
Specifications 2’’×2’’ system 4’’×4’’ system 4’’×6’’ system 4’’×10’’ system 4’’×12’’ system
Cable diameter 2mm 3mm 2mm 3mm 2mm 3mm 2mm 3mm 2mm 3mm
5cm 408 176 816 352 1224 528 2040 880 2448 1056
7.5cm N/A N/A 1224 528 1836 792 3060 1320 3672 1584
11cm N/A N/A 1632 704 2448 1056 4080 1760 4896 2112



Materials

  • Straight sections: PVC
  • Other plastic parts: ABS
  • Sizes for 2" x 2", 4" x 4", 4" x 6", 4" x 10", 4" x 12"
  • Ducting is ideal for routing and supporting cables throughout fiber networks
  • Available in five sizes without covers, or with regulars, or hinged covers
  • Slotted ducting ideal for cable with varying exit locations
  • Bend radius guides safely route fiber

How to Order

Model Dimension(WxDxH) Description Containment Components
RS48612W 600mmx1200mmx48U Data Center Server Rack Enclosure,48U 600mmWx1200mmD,Black or White Color option Server Rack Enclosure
RS48612CL2W 600mmx1200mmx48U 2-Bay Colocation Server Rack Enclosure,48U 600mmWx1020mmD,Black or White Color option
RS48612CL4 600mmx1200mmx48U 4-Bay Colocation Server Rack Enclosure,48U 600mmWx1200mmD,Black or White Color option
Basic Rack PDU 0U/1U Provide Reliable Power Distribution to multiple devices from a UPS system, generator or utility (mains) source. Power Distibution( PDU)
Metered Rack PDU 0U/1U Provide real-time remote monitoring of connected loads.
Switched Rack PDU 0U/1U

Provide real-time remote monitoring and remote on/off switching control and of individual outlets for power

cycling, delayed power sequencing,  and outlet use management.
MAC-MD1222 1200mm x 2200mm Mechnical Aisle End Door, Toughened Glass,with TCP/IP door access locking system Aisle Doors
MAC-SD1222 1200mm x 2200mm Sliding Aisle End Door, Toughened Glass,with TCP/IP door access locking system
MAC-RC0612 600mmx1200mm

Modular Top Roof Ceiling Kits(included top roof, supporting bracket for top roof,external decoration panel)

for the 600mmWide rack and 1200mmWide Aisle

 Aisle Roof Ceiling
RACABLETRAYM24 600mm Power Cable trough for 24 in. enclosures Top Cabling Accessories
RACABLETRAYN24 800mm Data cable partition for 24 in. enclosures
RACABLELADDER6IN3M 6 inch x 3000mm 6 in. Wide Cable Ladder, 1.5 meters per section, 2 sections per pair
MAC-MONITORSYS n/a

Monitor systems for the aisle containment, including the network EMS unit(can provide the data collection,

fire system and sound/light alarm and monitor the A/C, UPS, and power systems), software,10inch screen

 Monitor Systems
RASENSOR-TH n/a Sensor for the temperature and humidity in the aisle Controllers & Sensors
RASENSOR-SM n/a Sensor for the smoke in the aisle
RASENSOR-W n/a Sensor for the water in the aisle
