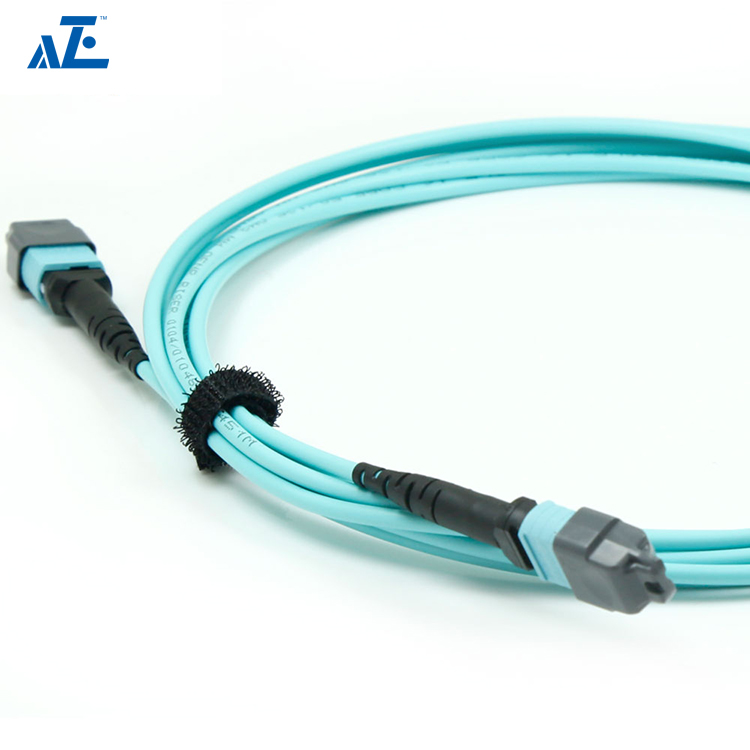

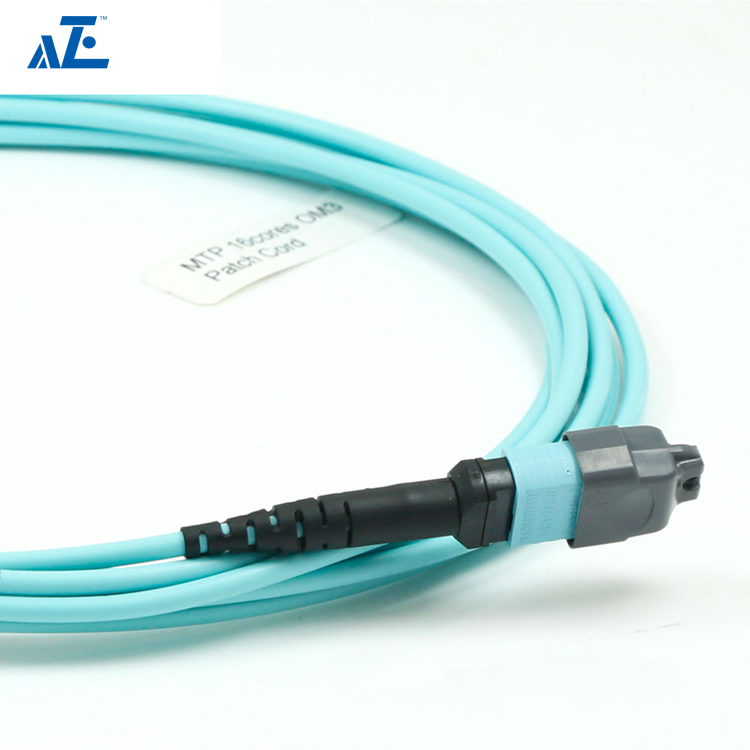

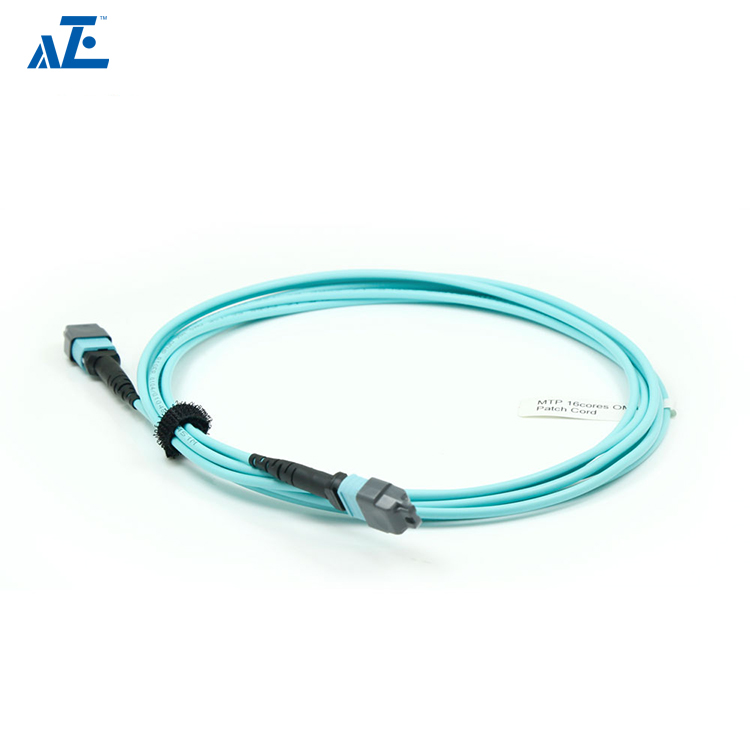

MTP Female 12 Fibers Type B Plenum (OFNP) OM3 50/125 Multimode Elite Trunk Cable, Aqua
Model:MTP-12F-OM3-AQ-xM
AZE's MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.
Overview
AZE's MTP Trunk Cable, the Best Choice to a Cost Effective & Easy Install Connecting, it has features:
- The same size as SC connectors but 12 times denser created for high density cabling.
- 0.35dB Low IL and stable signal transmission ensuring your network safety.
- High-quality MTP connectors tested and guaranteed by 3D interferometer.
Specification
| Connector A | MTP Female (pinless) | Connector B | MTP Female(pinless) |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| 40/100G Ethernet Distance | 100m at 850nm | 10G Ethernet Distance | 300m at 850nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Installation Tensile Load | 66 N | Long-Term Tensile Load | 50 N |
How to Order
Connector Technical Data
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Beside the fiber patch cables, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
