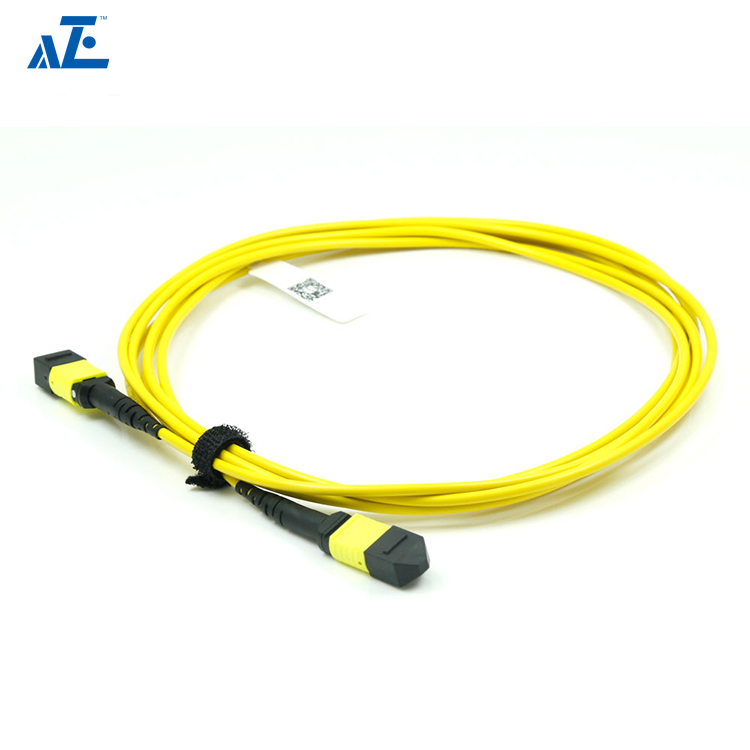

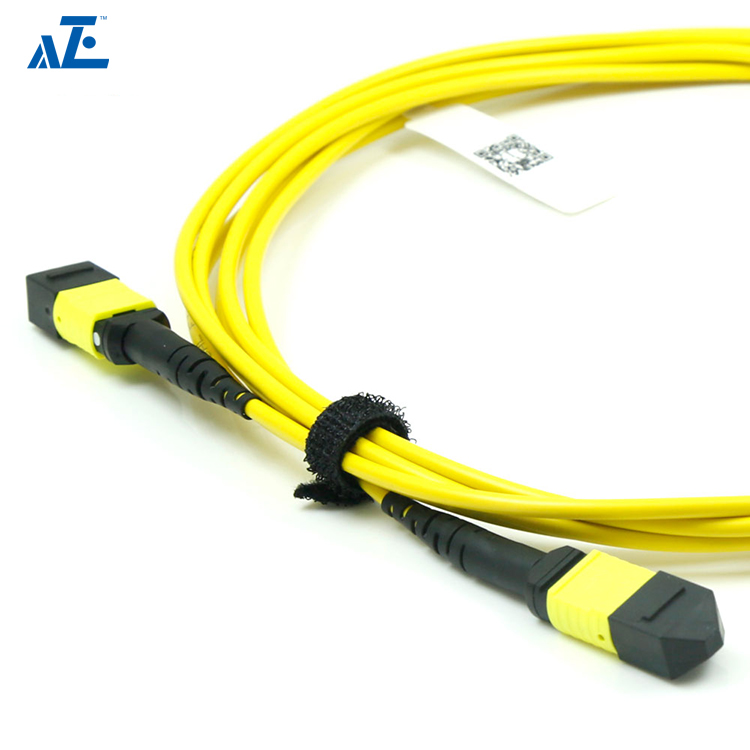

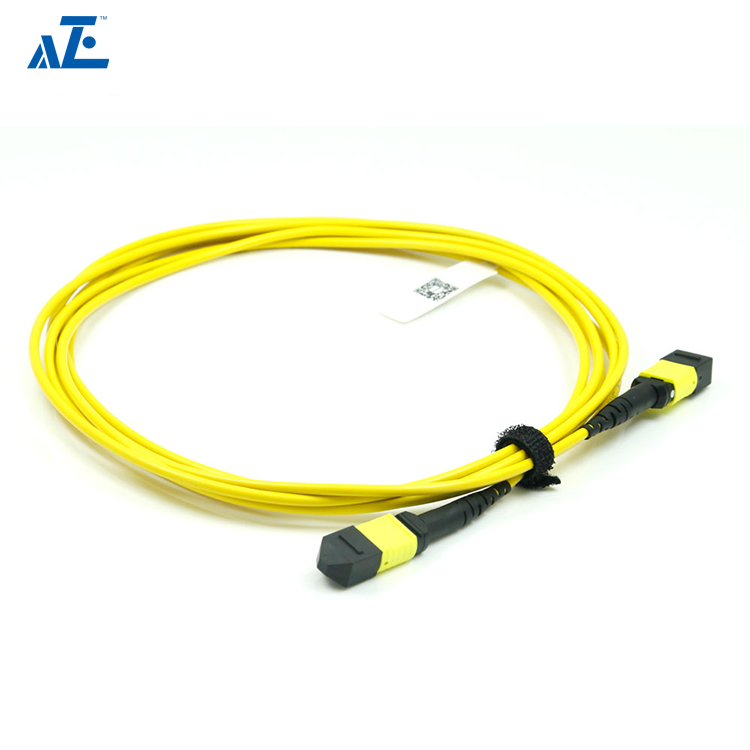

MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow
MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow

MTP Female 12 Fibers Type B LSZH OS2 9/125 Single Mode Elite Trunk Cable, Yellow

Model:MTP-12F-SM-YL-xM



AZE's MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optics direct connection and high-density data center applications.

Overview

Make MTP Trunk Cable Your Choice for High Density Fiber Networks, it has features:

  • 8 Fibers used for 40G QSFP+ PLRL4 direct connect applications.
  • Streamline network cabling in high-density data centers .
  • Allow for increased capacity and ease of cable management .

Specification

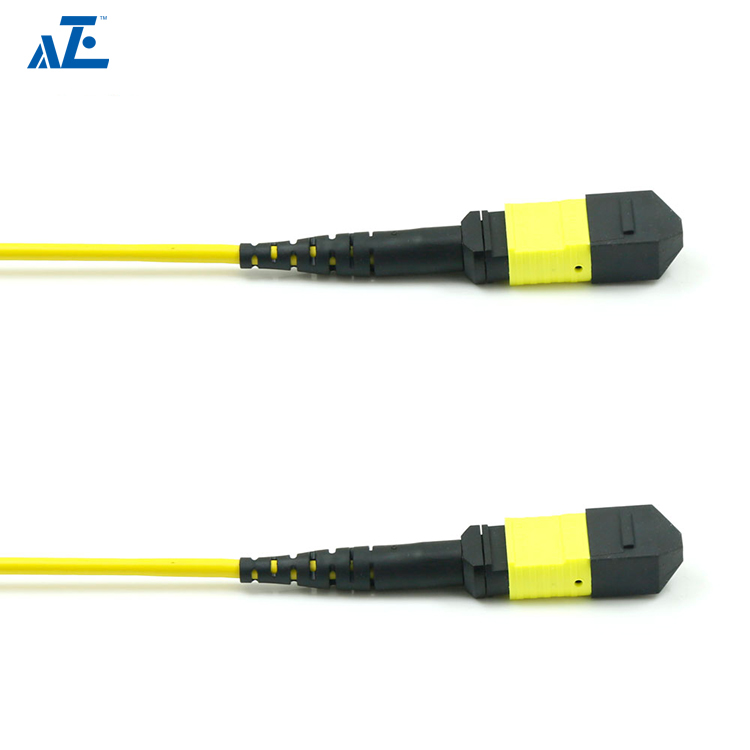

Connector A MTP Female (pinless) Connector B MTP Female(pinless)
Fiber Mode OS2 9/125μm SM Wavelength 1310/1550nm
Polish Type APC to APC Minimum Bend Radius 10mm
Insertion Loss 0.35dB Max (0.15dB Typ.） Return Loss ≥60dB
Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18 dB/km
Jacket OD 3.0mm Cable Jacket LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C

How to Order

Connector Technical Data

Connector Type  Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Beside the fiber patch cables, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
