MPO-24 to 12x LC Duplex, 24 Fibers OM3 Multimode MTP MPO Cassette
Model:MPO-LGX-LC12DX-OM3

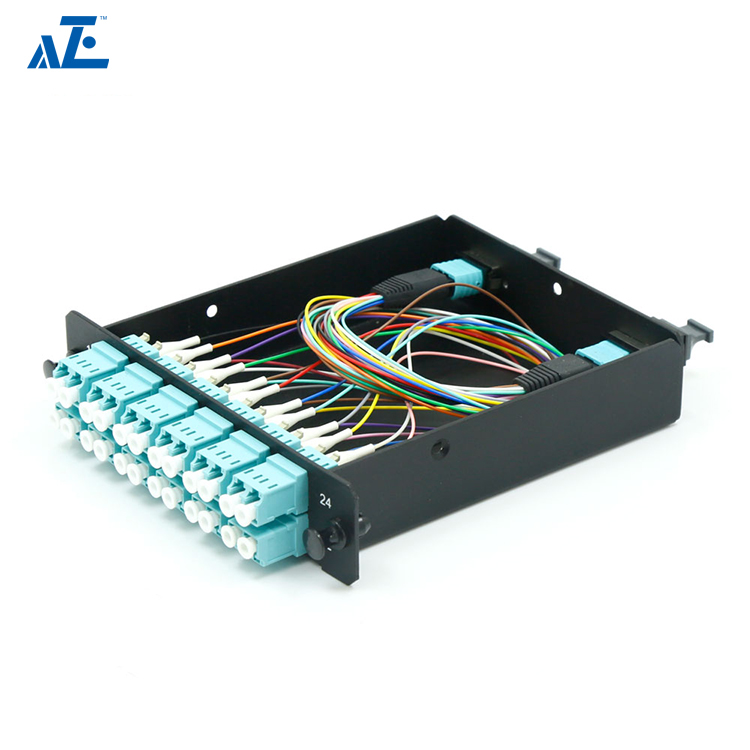

AZE's MPO Fiber Cassette Modules offer 24-fiber MPO adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.
- High density pre-terminated fiber optic system
- Improving reconfiguration during moves, adds and changes
Overview
MTP Fiber Cassette Modules offer 24-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.
Pre-terminated High Performance Cassette,Corning ClearCurve multimode fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.
More stable when the adapters are plugged into the cassette.
LC Duplex Adapter Port Identification
MPO Adapter with Opposed Key
Specification
| Fiber Count | 24 | Fiber Mode | OM3 50/125μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MTP UPC Male (pinned) |
| MTP Adapter | Key up to Key down | Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Return Loss | MTP≥20dB, LC≥30dB |
| Operating Temperature | 0°C to 70°C | Storage and Shipping Temperature | -40°C to 75°C |
How to Order
Connector Technical Data
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
