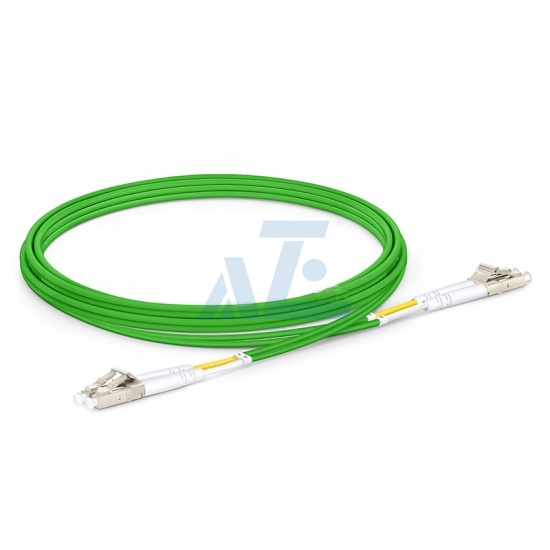

LC UPC to LC UPC Duplex OM5 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM5 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM5 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM5 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

LC UPC to LC UPC Duplex OM5 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

Model:OM5-LCU-LCU-DX-xxM-PVC



AZE's 50/125μm OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds. This 50/125 OM5 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

  • OM5 LC UPC To LC UPC
  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Manufactured with stringent quality control
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
  • Supports high-speed multi-channel data, voice & video applications

Overview

AZE's OM5 laser optimised multimode fibre optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. AZE fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.

  • Meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
  • Cable printed helps clarify and recognize different cables.
  • Zirconia Ceramic Ferrule Optimum IL and RL.
  • Bend insensitive fiber cable shows a great performance on resilience.

Specification

OM5 Multimode Fiber Cable

Connector Type LC to LC Polish Type UPC to UPC
Wavelength 850/1300nm Fiber Mode OM5 50/125μm
40G Ethernet Distance 440m at 850nm 100G Ethernet Distance 150m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥20dB
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Effective Modal Bandwidth (at 850nm) ≥4700 MHz·km Effective Modal Bandwidth (at 953nm) ≥2470 MHz·km
Cable Jacket PVC Cable Diameter 2.0mm
Fiber Count Duplex Polarity A(Tx) to B(Rx)
Storage Temperature -40~80°C Operating Temperature -20~80°C



Note:

  • Jack materials: PVC(OFNR), OFNP, LSZH
  • Length Options: 0.5M-300M
  • Connector Style：SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP，etc
  • Polish or Ferrule Interface Type：PC, UPC, APC
  • Cable Diameter：0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
  • Jacket Color：OM1, OM2 Orange

How to Order

Connector Technical Data

Connector Type  Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Beside the fiber patch cables, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
