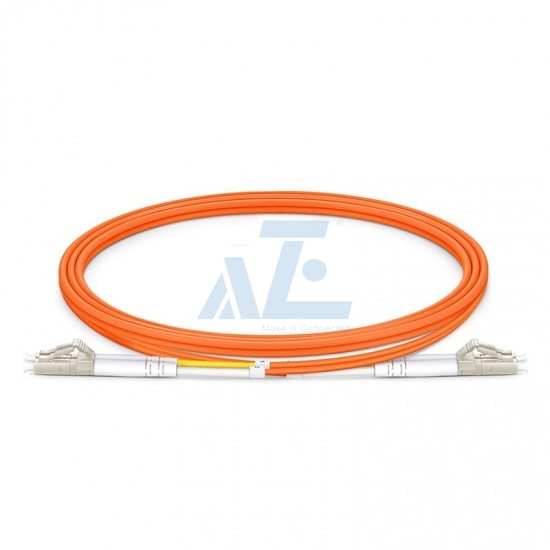

LC UPC to LC UPC Duplex OM1/OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM1/OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM1/OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
LC UPC to LC UPC Duplex OM1/OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

LC UPC to LC UPC Duplex OM1/OM2 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

Model:OM1-LCU-LCU-DX-xxM-PVC



AZE's 62.5/125μm OM1 (50/125μm OM2) multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. This 62.5/125 OM1 (50/125μm OM2) multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

  • OM1/OM2 LC UPC To LC UPC
  • Conforms to ISO/ IEC 11801
  • Individually labelled for lead tracing
  • Manufactured with stringent quality control
  • All leads are supplied with a factory test report
  • Fibre Optic Cables conform to ITU-651, TIA/EIA492
  • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
  • Supports high-speed multi-channel data, voice & video applications

Overview

AZE's 62.5/125 OM1 (50/125μm OM2) Multimode Fibre optic cables provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. AZE fibre optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards.

  • Meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
  • Cable printed helps clarify and recognize different cables.
  • Zirconia Ceramic Ferrule Optimum IL and RL.
  • Bend insensitive fiber cable shows a great performance on resilience.

Specification

OM1 Multimode Fiber Cable

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM1 62.5/125μm
Wavelength 850/1300nm 1G Ethernet Distance 280m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥20dB
Fiber Grade G.651 Minimum Bend Radius 15mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~80°C

OM2 Multimode Fiber Cable

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM2 50/125μm
Wavelength 850/1300nm 1G Ethernet Distance 280m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥20dB
Fiber Grade G.651 Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~80°C



Note:

  • Jack materials: PVC(OFNR), OFNP, LSZH
  • Length Options: 0.5M-300M
  • Connector Style：SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP，etc
  • Polish or Ferrule Interface Type：PC, UPC, APC
  • Cable Diameter：0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
  • Jacket Color：OM1, OM2 Orange

How to Order

Connector Technical Data

Connector Type  Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Beside the fiber patch cables, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
