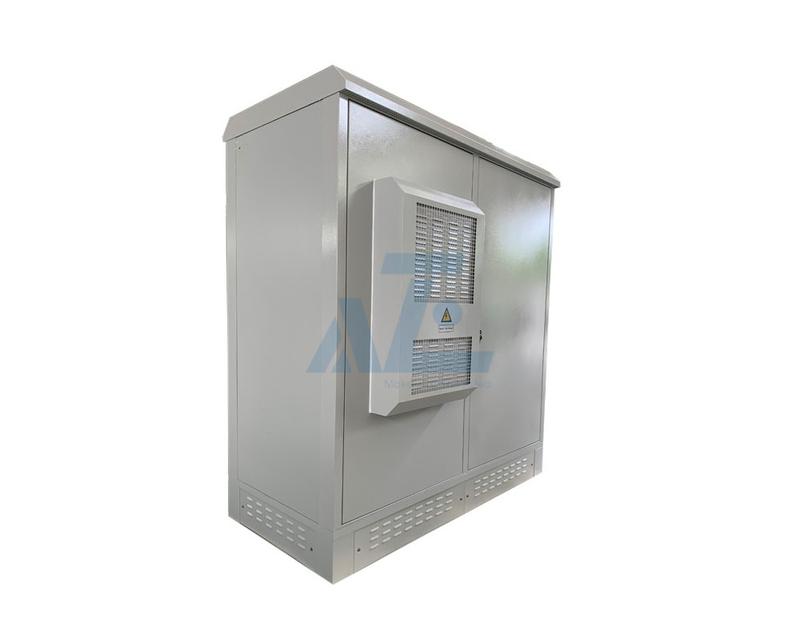

IP55 Rated Dual Bay Outdoor Lithium Battery and Solar Inverter Storage Cabinet System
Model:RODFIxx7519AC2KW-B2
AZE's 42U Dual Bay Outdoor Lithium Battery and Solar Inverter Storage Cabinet System are designed to house a variety of lithium batteries, solar inverter, mttp controllers, they provide protection from vandalism, dust, rain, snow and dripping water. It offers standard 19-inch or 23-inch racking rails and battery shelves, is a new design for telecom projects and surveillance projects. Installed components include heat exchanger climate control and side load center box, reversible rack rails, enhanced security, superior sealing with a 3-point locking system. Nema Outdoor Wireless LTE/4G/Wimax Double Bay Racking Enclosure.
- NEMA type, weatherproof, dustproof
- Dual bays for solar inverter, mttp controller equipment, battery installation compartment
- 19" or 23" mounting rails front and rear.
- AC powered air conditioner, DC powered heat exchanger or TEC cooler, which can cool down the devices installed inside the cabinet.
- Come with plinth for mounting on the floor ground, with cable gromments for the cabling
- Available battery box ,electrical load panel and side spool cabinet options
- Available in colours, Grey, Green or customized colors
- Supplied fully assembled
Overview
AZE's IP55 rated dual bay outdoor telecom cabinets provide double door options for racking requirements. Made of quality galvanized or aluminum or stainless steel, our outdoor enclosures are strong enough to rack even the heaviest equipment.
The dual bay outdoor telecom cabinets series include standard features: adjustable racking, a 3 point security locking system, and front , back door opening access. Many accessory items can be added to enhance functionality, this includes HVAC, electrical load panels, bases, trays and cable entry solutions.
- Tailored to fit your specific needs,available in different heights and depths.
- Different materials options: Metal steel, aluminum or stainless steel
- 19 inch or 23 inch mounting rails
- AC or DC powered 300W to 5000W air conditioners or 40W/K to 250W/K heat exchanger are options for pre-installed in the cabinet
- Sealed by gasket, waterproof design and air filter instrument realize the efficient protection
- The cabinet is designed specifically to protect it from human damage, water, dust and other damages.
- The cabinet allows natural wind cooling through filtered vents on front door and under lip of rain hood
- All fixings are internal to the cabinet to provide a secure solution
- Universal accessories available, including side box, battery shelf, blank panels,cable management, brush strips, power distribution units, rack drawers and shelves
The IP55 rated dual bay outdoor telecom cabinets provide a secure, climate controlled environment for any electronic equipment.
- Telecommunications
- Wireless/Broadband
- Fiber Optics
- Backhaul
- Base Station
- Small Cell/DAS
- Utility - Traffic
- Military
- Trailer-based Communications
- Wi-Fi
- Flexible and Scalable
The multi-compartment or multi-bay outdoor dustproof integrated cabinets or equipment outdoor cabinets (Sandwich panel construction,with air-conditioner design) are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water. The multi-compartment or multi-bay Outdoor Cabinet is well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package. The cabinet contains internal mounting rails, which allow installation of standard 19" equipment.
Specification
| Environmental | |
| IP (Ingress Protection) Rating | IP55,NEMA 4,NEMA 4X |
| Working Temperature | -40～55℃ |
| Physical | |
| Color | GREY RAL7035 |
| Material | Galvanized steel(Aluminum/stainless steel/Color coated steel optional) |
| Unit Dimensions (WxDxH) | 32inches x 30inches x 71.75inches |
| Unit Weight | 260lbs. |
| Shipping Dimensions(WxDxH) | 32inches x 38inches x 75inches |
| Shipping Weight | 310lbs. |
| Weight Capacity (static load) | 1000lbs. |
| Electronics | |
| Cooling | Cabinet Air Conditioner (Heat Exchanger/Thermoelectric Cooler(TEC) Optional) |
| Heating | As optional |
| Fans | DC48V |
| Power | PDU(Basic or Smart),AC/DC Power,Built-in Power Optional |
| Sensors | Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor |
| Monitoring | EMS,KVM Switches,Smart PDU |
| Certifications | |
| Approvals | EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | Description | Application |
| RODFI207575ACK5W | 20U 750mmWide x 750mmDeep Outdoor Integrated Cabinet (20U Equipment Space and Battery Storage Space) with AC1000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI247575AC1KW | 24U 750mmWide x 750mmDeep Outdoor Integrated Cabinet (24U Equipment Space and Battery Storage Space) with AC1500W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI27575AC1K5W | 27U 750mmWide x 750mmDeep Outdoor Integrated Cabinet (27U Equipment Space and Battery Storage Space) with AC2000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI208080ACK5W | 20U 800mm Wide x 800mm Deep Outdoor Integrated Cabinet (20U Equipment Space and Battery Storage Space) with AC1000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI248080AC1KW | 24U 800mm Wide x 800mm Deep Outdoor Integrated Cabinet (24U Equipment Space and Battery Storage Space) with AC1500W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI278080AC1K5W | 27U 800mm Wide x 800mm Deep Outdoor Integrated Cabinet (27U Equipment Space and Battery Storage Space) with AC2000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI209090ACK5W | 20U 900mm Wide x 900mm Deep Outdoor Integrated Cabinet (20U Equipment Space and Battery Storage Space) with AC1000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI249090AC1KW | 24U 900mm Wide x 900mm Deep Outdoor Integrated Cabinet (24U Equipment Space and Battery Storage Space) with AC1500W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
| RODFI279090AC1K5W | 27U 900mm Wide x 900mm Deep Outdoor Integrated Cabinet (27U Equipment Space and Battery Storage Space) with AC2000W Air Conditioner, IP55 Rated|Grey | Telecommunications,Wireless/Broadband,LTEE/4G/5G |
**********Notes**********
-
Shipping Option: Assembly unit with carton or wood pallet
-
Waterproof outdoor electrical enclosures IP Rating: IP55,IP65 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
-
Outdoor Enclosures Material Options: SPCC Cold Steel, Galvanized steel, Stainless steel or Aluminum available.
-
Outdoor Telecom Cabinet Cooling options: such as cooling fans, Cabinet air conditioner , Plate heat exchanger and Thermoelectric cooler available.
|
No.
|
Item
|
Specifications
|
|
1
|
AC110V or 220V/DC48V, Cooling Capacity 300W-5000W
|
|
|
2
|
DC48V, Heat transfer 40W/K-200W/K
|
|
|
3
|
DC48V, Cooling capacity 100W-300W
|
|
|
4
|
Fan
|
AC110/220V or DC 48V
|
-
A wide range of server rack accessories ,Fiber optics cabling solutions,Server Rack PDUs and KVM solutions compatablity
-
Grey(RAL7035) or other customize colors available
-
Outdoor telecom enclosure optional accessory parts
|
No.
|
Item
|
Specifications
|
|
1
|
Fan
|
AC110/220V or DC 48V
|
|
2
|
Power Supply
|
AC INPUT: 32A/1P MCB or 63A/2P MCB
DC OUTPUT: 16A/1P MCB |
|
3
|
Environment Monitoring Unit
|
48VDC Communication port: RS485, TCP/IP, SNMP optional
|
|
4
|
Door Sensor
|
Monitor door open status inside cabinet and provide real time alarm.
|
|
5
|
Water Sensor
|
Monitor water status inside cabinet and provide real time alarm.
|
|
6
|
Tilt & Shock Sensor
|
Monitor shock status inside cabinet and provide real time alarm.
|
|
7
|
Temperature & Humidity Sensor
|
Monitor temperature and humidity inside cabinet and provide real time alarm.
|
|
8
|
Smoke Sensor
|
Monitor smoke status inside cabinet and provide real time alarm.
|
Multi-bay outdoor enclosures can be customized for all Outside Plant applications - special engineering and additional equipment integration also available. Additional cabinet sizes are available. Call us or email us for information and pricing.
