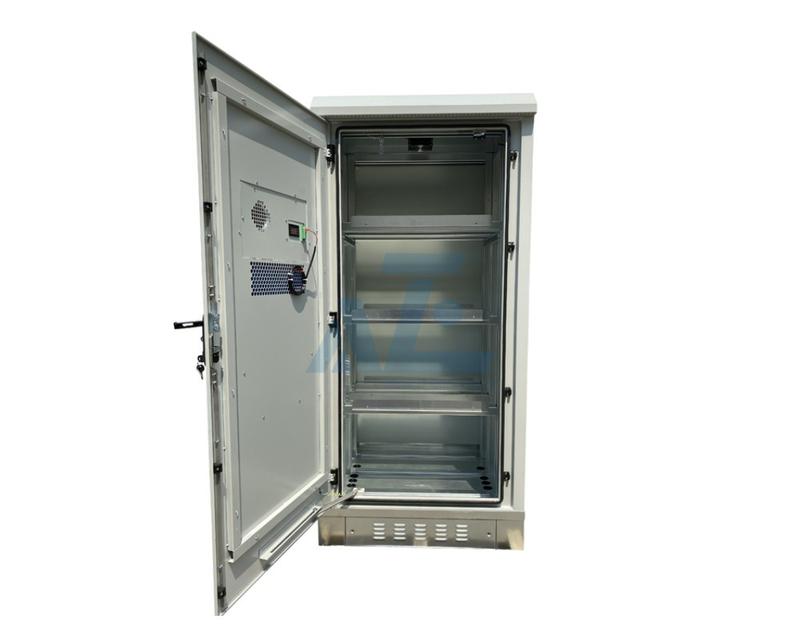

IP55 Outdoor Lead Acid Battery Cabinet Enclosure w/ DC48V Air Conditioner
Model:RODFBxx7575DC1KW
AZE's Outdoor Battery Cabinets with Air Conditioners are designed to house a variety of batteries, they provide protection from vandalism, dust, rain, snow and dripping water in wireless communication base station including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. They are widely used in a variety of applications and can be tailored to fit your specific needs.
- IP55 rated, weatherproof, dustproof
- DC48V powered air conditioner, heat exchanger or TEC coolers are optional, which can cool down the devices installed inside the cabinet.
- Come with plinth for mounting on the floor ground, with cable gromments for the cabling
- Sandwich construction Design: Cabinet design avoid the cold air and heat air exchange to providing a better cooling performance for the equipment.
- Battery Storage Space based on the battery specification.
- Available in colours, Grey, Green or customized colors
- Supplied fully assembled
Overview
AZE's outdoor battery cabinets with air conditioners are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water, they are well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package.
AZE can provide a wide selection range of outdoor integrated cabinet, battery cabinet and telecom equipment cabinet, which are widely used in wireless communication base station ,electricity,radio station, solar battery, television field,5G base industries,including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
- Tailored to fit your specific needs,available in different heights and depths.
- Different materials options: Metal steel, aluminum or stainless steel.
- Battery support brackets or 19"/23" rack mounting rails options.
- AC or DC powered 300W to 5000W air conditioners are options for pre-installed in the cabinet
- Sealed by gasket, waterproof design and air filter instrument realize the efficient protection
- The cabinet is designed specifically to protect it from human damage, water, dust and other damages.
- The cabinet allows natural wind cooling through filtered vents on front door and under lip of rain hood
- All fixings are internal to the cabinet to provide a secure solution
- Universal accessories available, including side box, battery shelf, blank panels,cable management, brush strips, power distribution units, rack drawers and shelves
Climate controlled products such as air conditioners,heat exchanger, or TEC coolers are installed on outdoor battery cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery. It provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
Outdoor Lead Acid Battery Cabinet mainly provides a stable working temperature and dust-free environment for lead acid battery, they are integrated with thermal insulation and equipped with air conditioner of different refrigerating capacity. The IP55 rated outdoor battery cabinet can effectively control the inner ideal temperature of the cabinet and make the lead acid battery run in an ideal temperature condition.
Specification
| Environmental | |
| IP (Ingress Protection) Rating | IP55,NEMA 4,NEMA 4X |
| Working Temperature | -40～55℃ |
| Physical | |
| Color | GREY RAL7035 |
| Material | Galvanized steel(Aluminum/stainless steel/Color coated steel optional) |
| Unit Dimensions (WxDxH) | 30inches x 30inches x 80inches |
| Unit Weight | 500lbs. |
| Shipping Dimensions(WxDxH) | 32inches x 38inches x 86inches |
| Shipping Weight | 550lbs. |
| Weight Capacity (static load) | 1000lbs. |
| Electronics | |
| Cooling | Cabinet Air Conditioner (Heat Exchanger/Thermoelectric Cooler(TEC) Optional) |
| Heating | As optional |
| Fans | DC48V |
| Power | PDU(Basic or Smart),AC/DC Power,Built-in Power Optional |
| Sensors | Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor |
| Monitoring | EMS,KVM Switches,Smart PDU |
| Certifications | |
| Approvals | EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | Description | Application |
| RODFB127575DCK8W | 1241mmH 750mmWide x 750mmDeep Outdoor Battery Cabinet with DC48V 800W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB137575DC1KW | 1300mmH 750mmWide x 750mmDeep Outdoor Battery Cabinet with DC48V 1000W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB177575DC1K5W | 1775mmH 750mmWide x 750mmDeep Outdoor Battery Cabinet with DC48V 1500W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB128080CK8W | 1241mmH 800mmWide x 800mmDeep Outdoor Battery Cabinet with DC48V 800W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB138080DC1KW | 1300mmH 800mmWide x 800mmDeep Outdoor Battery Cabinet with DC48V 1000W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB178080DC1K5W | 1775mmH 800mmWide x 800mmDeep Outdoor Battery Cabinet with DC48V 1500W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB139090DCK8W | 1300mmH 900mmWide x 900mmDeep Outdoor Battery Cabinet with DC48V 800W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB169090DC1KW | 1686mmH 900mmWide x 900mmDeep Outdoor Battery Cabinet with DC48V 1000W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
| RODFB179090DC1K5W | 1775mmH 900mmWide x 900mmDeep Outdoor Battery Cabinet with DC48V 1500W Air Conditioner,IP55 Rated|Grey | Telecom,Base Station, Solar Energy,Wireless Cell Sites |
**********Notes**********
-
Shipping Option: Assembly unit with carton or wood pallet
-
Waterproof outdoor electrical enclosures IP Rating: IP55,IP65 rated or NEMA 3R,NEMA 4, NEMA 4X rated available
-
Outdoor Enclosures Material Options: SPCC Cold Steel, Galvanized steel, Stainless steel or Aluminum available.
-
Outdoor Telecom Cabinet Cooling options: such as cooling fans, Cabinet air conditioner , Plate heat exchanger and Thermoelectric cooler available.
|
No.
|
Item
|
Specifications
|
|
1
|
AC110V or 220V/DC48V, Cooling Capacity 300W-5000W
|
|
|
2
|
DC48V, Heat transfer 40W/K-200W/K
|
|
|
3
|
DC48V, Cooling capacity 100W-300W
|
|
|
4
|
Fan
|
AC110/220V or DC 48V
|
-
A wide range of server rack accessories ,Fiber optics cabling solutions,Server Rack PDUs and KVM solutions compatablity
-
Grey(RAL7035) or other customize colors available
-
Outdoor telecom enclosure optional accessory parts
|
No.
|
Item
|
Specifications
|
|
1
|
Fan
|
AC110/220V or DC 48V
|
|
2
|
Power Supply
|
AC INPUT: 32A/1P MCB or 63A/2P MCB
DC OUTPUT: 16A/1P MCB |
|
3
|
Environment Monitoring Unit
|
48VDC Communication port: RS485, TCP/IP, SNMP optional
|
|
4
|
Door Sensor
|
Monitor door open status inside cabinet and provide real time alarm.
|
|
5
|
Water Sensor
|
Monitor water status inside cabinet and provide real time alarm.
|
|
6
|
Tilt & Shock Sensor
|
Monitor shock status inside cabinet and provide real time alarm.
|
|
7
|
Temperature & Humidity Sensor
|
Monitor temperature and humidity inside cabinet and provide real time alarm.
|
|
8
|
Smoke Sensor
|
Monitor smoke status inside cabinet and provide real time alarm.
|
Outdoor Battery Cabinet Enclosures can be customized for all Outside Plant applications - special engineering and additional equipment integration also available. Additional cabinet sizes are available. Call us or email us for information and pricing.
