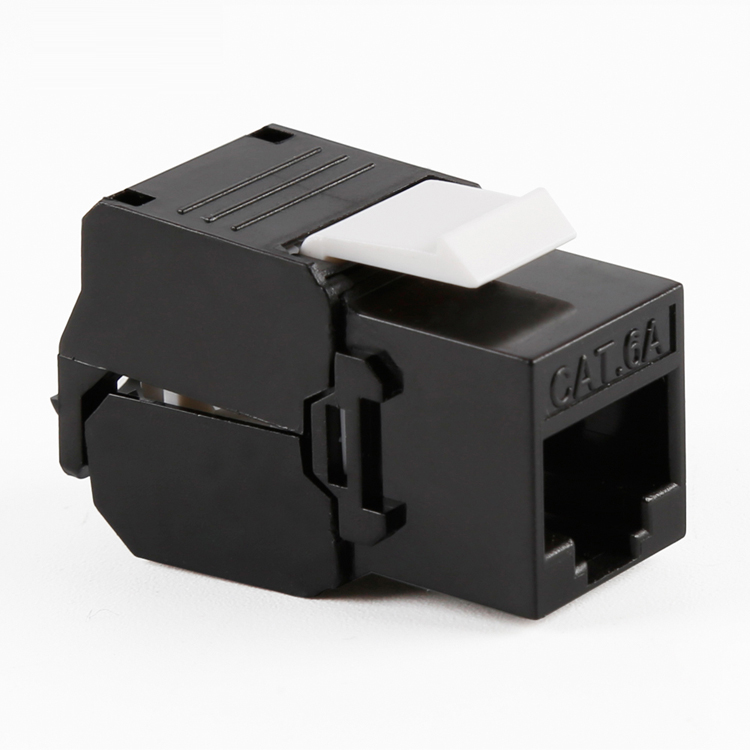

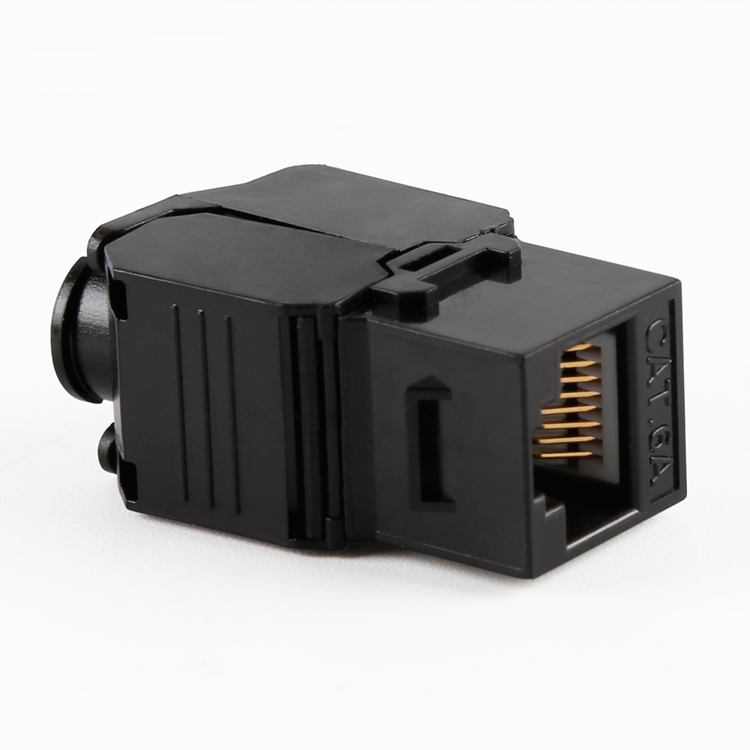

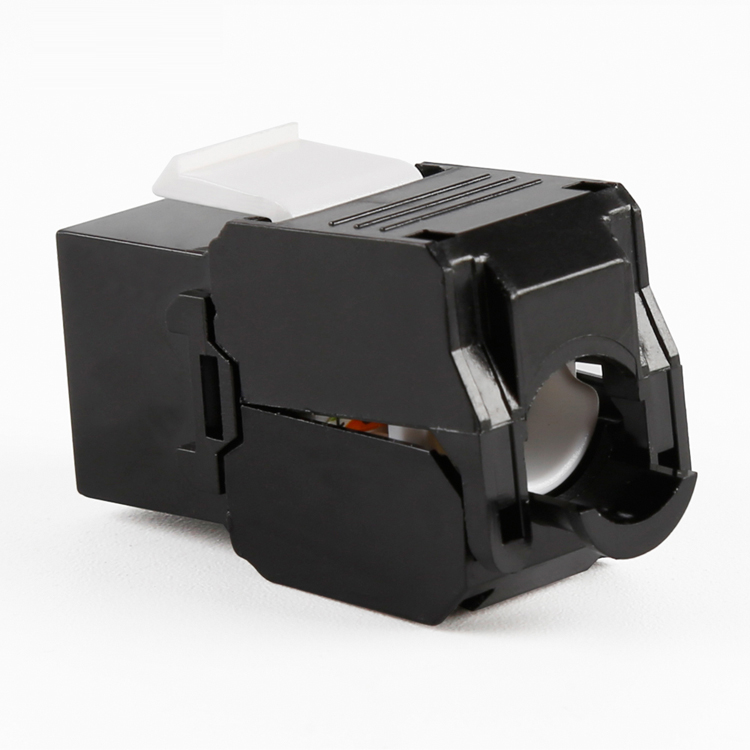

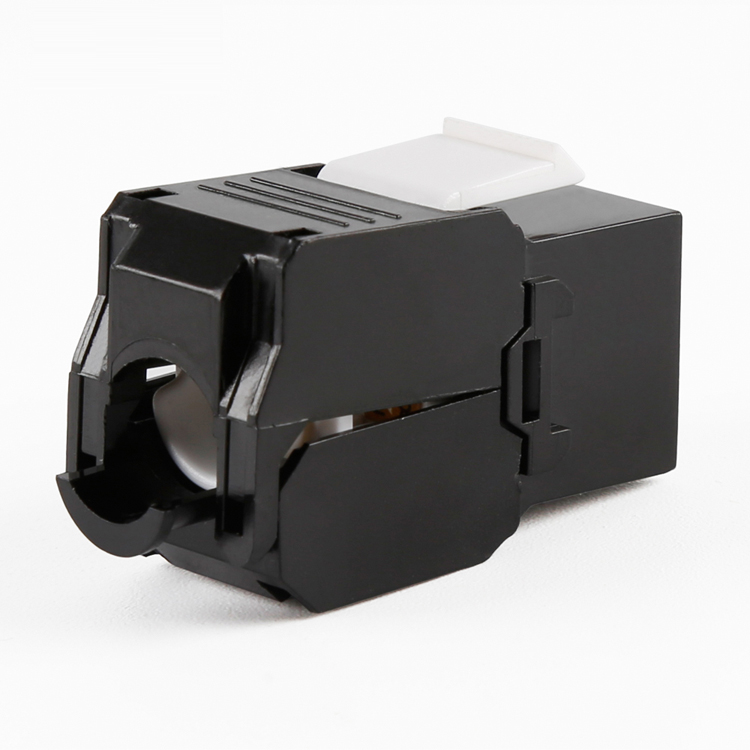

CAT6A RJ45 (8P8C) Unshielded Toolless Keystone Jack Module

Model:TC6AKEYSTONEV-xx(Color)

AZE RJ45 Keystone Jacks are standard size for use to connect solid 23 or 24 AWG cables into standard patch panels or wall plates with keystone blanks. The 110-type terminations are color-coded for both T568A and T568B wiring schemes and the 90-degree right angle connection allows for easy termination.Constructed of high-impact, fire-retardant high temperature thermoplastic with gold-plated contacts, these Keystone Jacks meet or exceed Category 5e performance in compliance with the TIA/EIA 568-C.2 standard.

Self-terminating-no tool required
CAT6A Performance Speeds of up to 550 MHz
8 Pin x 8 Conductor for Streamlined Connection
Gold-Plated Nickel Contacts Provide Corrosion Resistance and Signal Conductivity
Easy to Read Wiring Label to Facilitate Installation
Phosphor Bronze IDC Contacts Ensure Excellent Conductivity, Durability, and Outstanding Resistance Against Wear or Corrosion
Fire Retardant Plastic Housing Provides Additional Protection Against the Elements
Nylon Termination Terminals
Meets EIA/TIA Standards
Available in a Wide Array of Colors

Inquiry Compare Click To Compare

Overview

AZE Cat6a RJ45 keystone jack designed for use with a wall-plate for network wiring installs. Simply insert the leads in the coloring order you wish and clamp them down. Category 6a Keystone Jacks are 8-Position 8-Conductor (8P8C),CAT6a Keystone Jack's line meets all requirements for EIA/TIA and tested to comply with stringent transmissions and safety standard, available in a variety of colors to help organize your installation.

Self-terminating-no tool required
Category-6a (Cat6a) Ethernet Keystone Couplers
RJ45 Keystone Category 6a jacks with tool-less connectors
45-degree angled port for an easy connection to network cables
Keystone Jack will work with any keystone patch panel, wall plate or surface-mount box
Compatible with both T568A and T568B wiring patterns

Specification

Product Type	Cat6a Keystone Jack	Color	Black
Connector	RJ45 Female	Termination Type	110 TYPE
Shielding Type	Unshielded	Data Rate Support	1000 Base-T
Wire Gauge Supported	22-26 AWG Cable	Wiring Scheme	T568A & T568B
Housing Material	ABS	Operating Temperature	-10°C to 60°C (-14°F to 140°F)

How to Order

Product Application

Designed for installation with convenience, and perform well with patch panels and network cables.
Compatible with keystone wall plates and network cables and can help save time and energy.

Beside keystone jacks, AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
