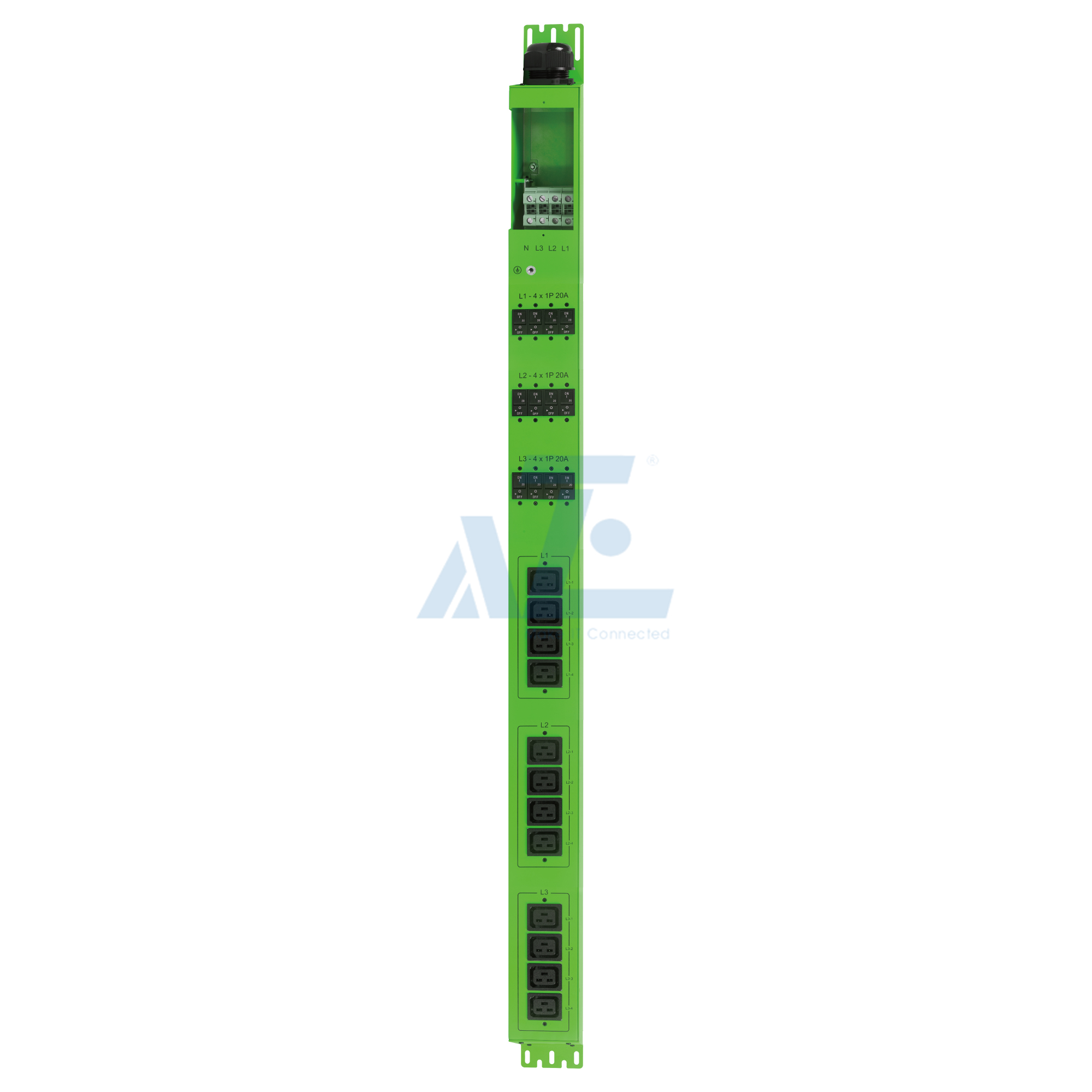

Basic Mining PDU, 3 Phase, 415V/80A, (12) C19, w/ Hydraulic Magnetic Circuit Breakers, Green
Model:MPDU380-12C19-HCB12-GN
This 3 Phase 80A/415V mining PDU is a robust and reliable power distribution system that can power large industrial and commercial facilities.The Mining PDU is designed specifically for crypto mining applications, can operate under a wide range of environmental conditions, and can withstand high temperatures, humidity, and other challenging condition.
- Robust steel structure,Green color
- 3 Phase, 415V, 80A rated current
- 12x IEC C19, can be loaded with 20 amps each
- 12pcs Hydraulic Magnetic Circuit Breakers(Multiple brands circuit breaker optional)
- Support color customization of shell, such as red, yellow, blue, blue, white, purple, and black
Overview
AZE provides high power, high-Density crypto mining PDUs are designed to provide reliable power to feed professional mining gears,the Mining PDUs feature advanced technology that ensures reliable and safe power distribution,with multiple input and output options, customized amperages and voltages, and remote monitoring capabilities, our PDUs are the ideal solution for the unique power needs of mining operations.
- Made with steel, powder coating.
- Multiple brands circuit breaker optional.
- Supports multi-functional selection of PDU modules. For example, the color of the socket can be red, yellow, and blue, all black color, or black socket with a lock function.
- Support color customization of shell, such as red, yellow, blue, blue, white, purple, and black.
- Have the protection or function modules such as circuit breaker, fuse for input protection, meticulous double protection.
- Customized mounting bracket, with multiple positioning screw holes, it makes the PDU lock more firmly.
Crypto mining PDUs are designed for commercial and industrial applications,widely used in the area of Crypto Mining, Data Centers, Power Generation, Industrial Automation, and IT.
Specification
| Physical | |
| Color | Black |
| Material | Metal |
| Dimension(LxWxH) | 1170x85x85mm |
| Net Weight | 12 Kgs |
| Input Voltage | Output Voltage |
| 380V~/3 Phase (LLLNG) | 220V~ WYE |
| 415V~/3 Phase (LLLNG) | 240V~ WYE |
| 433V~/3 Phase (LLLNG) | 250V~ WYE |
| 208V~/3 Phase (LLLNG) | 208V~ Delta(option) |
| 480V~/3 Phase (LLLNG) | 277V~ WYE |
| Input | |
| Input Voltage | 415V 3Phase |
| Maximum Input Current | 63Amp |
| Plug Type | N/A |
| Input Phase | Three Phase |
| Input Cord Length | N/A |
| Input Connector | 63Ax5wires(or junction box,input breaker are optional) |
| Output | |
| Output Receptacles | (24) IEC 60320 C13 |
| Total Current | Max 63A |
| Rating Output Voltage | 208~250V |
| Max Output Power for each Outlet | Under 208V, Max 1638W Per Outlet |
| Under 220V, Max 1732W Per Outlet | |
| Under 240V, Max 1890W Per Outlet | |
| Under 250V, Max 1966W Per Outlet | |
| Total Output Power | Max 45KW |
| Protection | |
| Breaker | 1P 63A Hydraulic Magnetic Breaker x 3pcs |
| Wire Specification | UL certificate,with flame retardant funtion |
| Environmental | |
| Operating Temperature | 0°C to 550°C (32°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Certifications | |
| Approvals | RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
