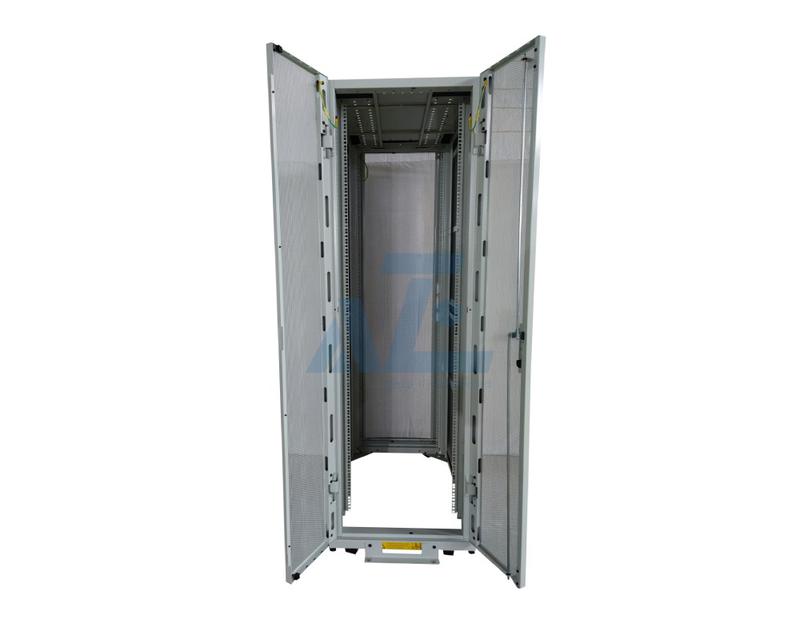

AZE Server Cabinet Enclosure, 45U, White, 2124H x 600W x 1070D mm
Model:RS45610W
Heavy-duty, locking, 45U White Server Cabinet Enclosure that accommodates all standard 19-inch rackmount equipment and ships fully assembled for quick and easy deployment in secure, high-density server and IT networking environments.
- White color
- 45U Standard 24" (600mm) width and 42" (1070mm) depth for optimal use of floor space
- 3000 lbs (1360.8 kgs) stationary / 2250 lbs (1020.6 kgs) rolling load capacity
- Locking, removable, reversible front and rear mesh doors
- 78% Perforated Doors to Maximize Front-to-rear Airflow
- Locking, removable side panels keyed alike with doors
- Adjustable Mounting Rails and Easy-view Depth Index Can Be Quickly Repositioned
- Casters and Leveling Feet Allow Cabinet Move and Position Easily on Uneven Floors
- Ships fully assembled or flat packed
Overview
The server cabinet enclosure provides security for storing standard 19" rack-mount equipment and compatible with EIA-310 compliant equipment, it includes perforated doors for efficient airflow, top panel cable access openings, 19" adjustable rails, toolless vertical PDU mounting, and rolling castors supporting supports a weight capacity of 3000 lbs (1360.8 kgs),each server rack enclosure willl provide a solid foundation for applications from high density computing to networking.
It is designed to simplify rack equipment installations and rack equipment maintenance, supporting and protecting rack-mount servers, storage, and network equipment in multi-tenant and enterprise data centers, computer rooms, and network facilities. Server rack enclosures are delivered ready for high density environments to serve your mission critical needs and they can give you the flexibility you need with easy installation.
Specification
| Physical | |
| Color | White |
| Unit Dimensions (WxDxH) | 24inchesx42inchesx83.66inches |
| Unit Weight | 306.91lbs |
| Shipping Dimensions(WxDxH) | 24.80inchesx45.28inchesx88.69inches |
| Shipping Weight | 343.97lbs |
| Factory Preset Mounting Depth | 30.12inches |
| Maximum Mounting Depth | 35.24inches |
| Minimum Mounting Depth | 7.09inches |
| Weight Capacity (dynamic load) | 2250lbs. |
| Weight Capacity (static load) | 3000lbs. |
| Environmental | |
| Protection Class | IP20 |
| Certifications | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| Model | Height | Width | Depth | Description | Application |
| RS24660 | 24U | 24 in. | 24 in. | 24U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 600mm Deep | Audio/visual applications |
| RS42660 | 42U | 24 in. | 24 in. | 42U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 600mm Deep | Audio/visual applications |
| RS48660 | 48U | 24 in. | 24 in. | 48U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 600mm Deep | Audio/visual applications |
| RS24680 | 24U | 24 in. | 32 in. | 24U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 800mm Deep | Audio/visual applications |
| RS42680 | 42U | 24 in. | 32 in. | 42U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 800mm Deep | Audio/visual applications |
| RS48680 | 48U | 24 in. | 32 in. | 48U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 800mm Deep | Audio/visual applications |
| RS24610 | 24U | 24 in. | 42 in. | 24U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 1070mm Deep | Low/medium-density servers |
| RS42610 | 42U | 24 in. | 42 in. | 42U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 1070mm Deep | Low/medium-density servers |
| RS45610 | 45U | 24 in. | 42 in. | 45U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 1070mm Deep | Low/medium-density servers |
| RS48610 | 48U | 24 in. | 42 in. | 48U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 1070mm Deep | Low/medium-density servers |
| RS52610 | 52U | 24 in. | 42 in. | 52U Standard Server Rack Enclosure with Doors & Side panels,600mm Wide x 1070mm Deep | Low/medium-density servers |
| RS42612 | 42U | 24 in. | 48 in. | 42U Deep Server Rack Enclosure with Doors & Side Panels,600mm Wide x 1200mm Deep | Medium-density servers |
| RS45612 | 45U | 24 in. | 48 in. | 45U Deep Server Rack Enclosure with Doors & Side Panels,600mm Wide x 1200mm Deep | Medium-density servers |
| RS48612 | 48U | 24 in. | 48 in. | 48U Deep Server Rack Enclosure with Doors & Side Panels,600mm Wide x 1200mm Deep | Medium-density servers |
| RS52612 | 52U | 24 in. | 48 in. | 52U Deep Server Rack Enclosure with Doors & Side Panels, 600mm Wide x 1200mm Deep | Medium-density servers |
| RS427510 | 42U | 30 in. | 42 in. | 42U 750mm Wide Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1070mm Deep | Networking and blade applications |
| RS457510 | 45U | 30 in. | 42 in. | 45U 750mm Wide Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1070mm Deep | Networking and blade applications |
| RS487510 | 48U | 30 in. | 42 in. | 48U 750mm Wide Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1070mm Deep | Networking and blade applications |
| RS527510 | 52U | 30 in. | 42 in. | 52U 750mm Wide Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1070mm Deep | Networking and blade applications |
| RS427512 | 42U | 30 in. | 48 in. | 42U 750mm Wide & Deep Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1200mm Deep | HD networking and blade applications |
| RS457512 | 45U | 30 in. | 48 in. | 45U 750mm Wide & Deep Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1200mm Deep | HD networking and blade applications |
| RS487512 | 48U | 30 in. | 48 in. | 48U 750mm Wide & Deep Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1200mm Deep | HD networking and blade applications |
| RS527512 | 52U | 30 in. | 48 in. | 52U 750mm Wide & Deep Server Rack Enclosure with Doors & Side Panels,750mm Wide x 1200mm Deep | HD networking and blade applications |
-
Shipping Option: Assembly unit or flat packed
-
2" castors or 3" HD castors optional
-
A wide range of server rack accessories compatablity
-
The server rack cabinets can be preconfigured without standard doors and side panels,more configurations are available please contact representative for more information
-
White or black server rack enclosure , colocation server cabinet, Server Rack PDUs,KVMs and aisle containment solution available.
-
Shock packaging available for shipping enclosures with up to 2,000 lbs. of equipment installed.
