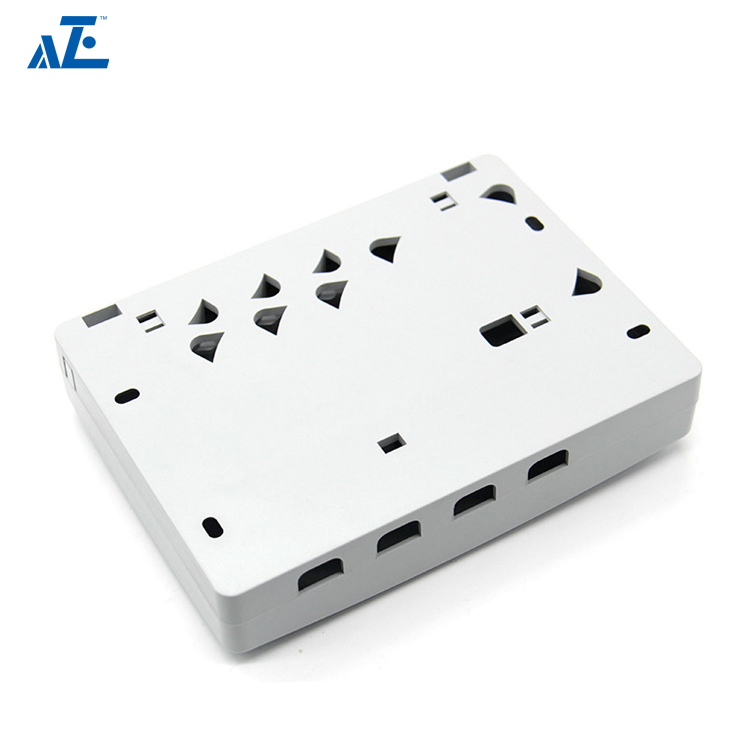

Model:INDTBOX4A



AZE's Indoor Fiber Optic Termination Wall Box is used to terminate optical installation cables to pigtails at the subscribe's premises.It is mounted on the wall.The cable is fed to the wall outlet from the side .The wall outlet consists of a body and a cover.The body is fixed to the wall with screws and is used for inserting and routing of the optical installation cable and mounting of optical adapters.

  • Accommodation of 4 adapters
  • Easy installation
  • Suitable for SC SX or LC DX adapters

Overview

AZE's indoor ftth 4 port terminal box is used to terminate optical installation cables to pigtails at the subscribe's premises.It is mounted on the wall.The cable is fed to the wall outlet from the side .The wall outlet consists of a body and a cover .The body is fixed to the wall with screws and is used for inserting and routing of the optical installation cable and mounting of optical adapters.

  • Small size,light weight,use conveniently
  • ABS material,fireproof and dustproof
  • Radian appearance makes it slinky
  • Suitable for various modules and multimedia interfaces
  • Embedded chart and logo position make it easy to identity
  • Support MM or SM fiber connection
  • 4 ports for SC simplex adapters

Specification

Model INDTBOX4A
Outline Dimension(LxWxH) 150*110*30mm
IP Rating IP20
Material ABS/ WHITE
Max Core 4 Port /8 Port
Operating Temperature -40~+65℃
Adapter Capacity 4xSC SX; 4xLC DX;  4xFC; 4xST
Accessory Kits Heat shrinkable sleeve;Expansion tube;Screw
Installation Type Wall Mount(INDOOR)
Insertion loss ≤0.2dB
UPC Return Loss ≧50dB
APC Return Loss ≧60dB

How to Order

Model Dimension Description
INDTBOX2A 84mmx130mmx24mm 2 Port Indoor Wall Mount Terminal Box,with Sliding cover,without adapter and pigtail
INDTBOX2C 86mmx86mmx24mm 2 Port Indoor Wall Mount Terminal Box,86 Type,without adapter and pigtail
INDTBOX2F 104mmx80mmx23mm 2 Port Indoor Wall Mount Terminal Box,with Screw/without Screw,without adapter and pigtail
INDTBOX4A 150mmx110mmx30mm 4 Port Indoor Wall Mount Terminal Box,with Shaft,without adapter and pigtail
INDTBOX4C 100mmx81mmx29mm 4 Port Indoor Wall Mount Terminal Box,without adapter and pigtail
ODFDBOX2A 165mmx100mmx30mm 2 Port Outdoor Fiber Optic Distribution Box,without Adapter and Pigtail
ODFDBOX8C 215mmx165mmx45mm 8 Port Outdoor Fiber Optic Distribution Box,without Adapter and Pigtail
ODFDBOX12D 250mmx200mmx72mm 12 Port Outdoor Fiber Optic Distribution Box,without Adapter and Pigtail
ODFDBOX16D 331mmx274mmx96mm 16 Port Outdoor Fiber Optic Distribution Box,without Adapter and Pigtail
ODFDBOX24D 331mmx274mmx96mm 24 Port Outdoor Fiber Optic Distribution Box,without Adapter and Pigtail
