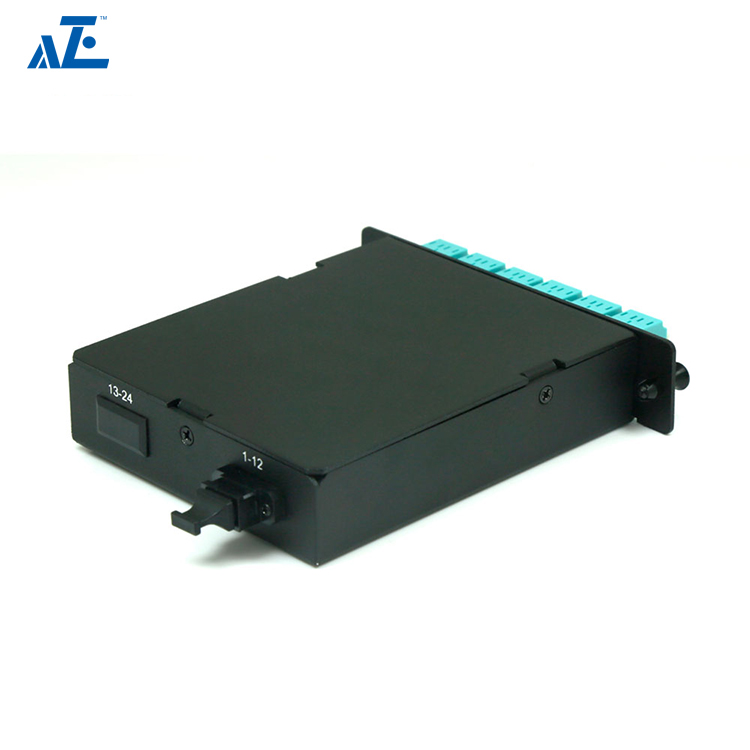

Model:MPO-LGX-LC12DX-OM4



AZE's MPO Fiber Cassette Modules offer 24-fiber MPO adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.

  • High density pre-terminated fiber optic system
  • Improving reconfiguration during moves, adds and changes

Overview

MTP Fiber Cassette Modules offer 24-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.

Pre-terminated High Performance Cassette,Corning ClearCurve multimode fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.

More stable when the adapters are plugged into the cassette.
LC Duplex Adapter Port Identification

MPO Adapter with Opposed Key

Specification

Fiber Count 24 Fiber Mode OM4 50/125μm
Front Connector Type 12 LC UPC Duplex Rear Connector Type 2 x MTP UPC Male (pinned)
MTP Adapter Key  up to Key down Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
Insertion Loss MTP≤0.35dB, LC≤0.2dB Return Loss MTP≥20dB,   LC≥30dB
Operating Temperature 0°C  to 70°C Storage and Shipping Temperature -40°C to 75°C

How to Order

Connector Technical Data

Connector Type  Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /
