2U 48-Port CAT6 UTP Unshielded Patch Panel

Model:C6PANEL2U48

AZE's 48-Port CAT6 patch panel is the perfect addition for your home or office network and can be mounted to any EIA standard rack, bracket or in an enclosure with ease.They are used for LAN equipment between, data communication, integrated wiring (mainly for the back end of the front-end information point management of modular equipment.

Capacity: 48 Ports (2U), UTP
Material: 1.5mm SPCC
19" Rack mount designed, label marks for convenience of identification and network management
Accessories include cable ties & mounting screws
With cable management bars for cabling.
RoHS compliant

Inquiry Compare Click To Compare

Overview

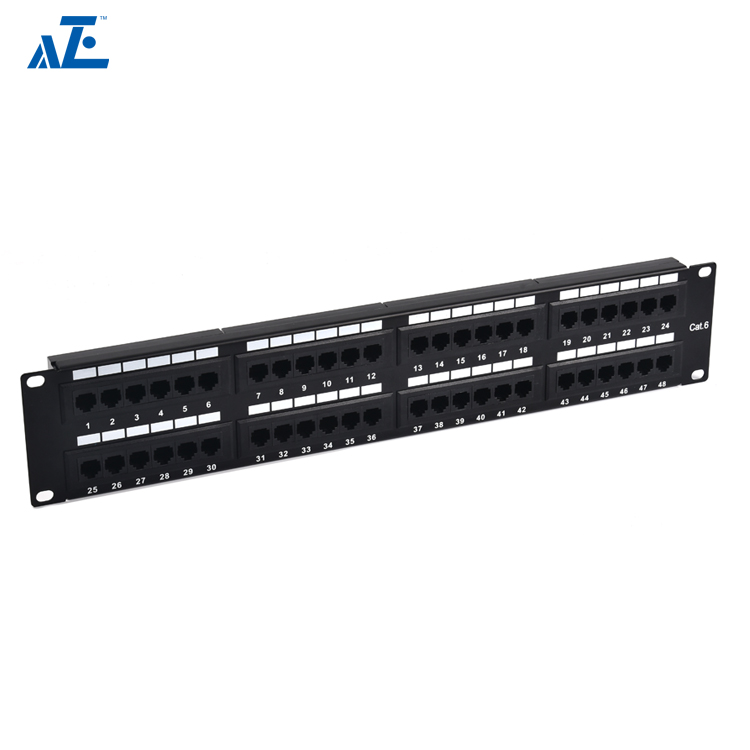

AZE's 48-port Cat6 patch panel is color coded for both T568A and T568B wiring, providing the perfect solution for any voice or LAN application. For hassle-free connections, this Ethernet patch panel offers straight Cat6 ports with 110 type termination, making it easy to insert and remove your cables. The clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs for efficient system management.

Features

Standard 19-inch rack type, standard 2U height
Transmission performance meets ANSI/TIA 568C.2, ISO/IEC11801, YD/T926, EN50173
Mount to Any EIA 19" Rack or Cabinet in Enterprise Networks and Data Center
ISO/IEC11801 and TIA/EIA568 Standards at Swept Frequencies 1 to 250 MHz
Can Be Clearly Identified with Optional Labels and Icons for Port Identification
Terminates 4-pair, 22–26 AWG, 100-ohm Twisted Pair Cable with T568A/B Schemes
Support POE/POE+ (IEEE 802.3af/at)
Provides a Quick Plug and Play Connection to RJ45 Patch Cords, Backwards Compatible

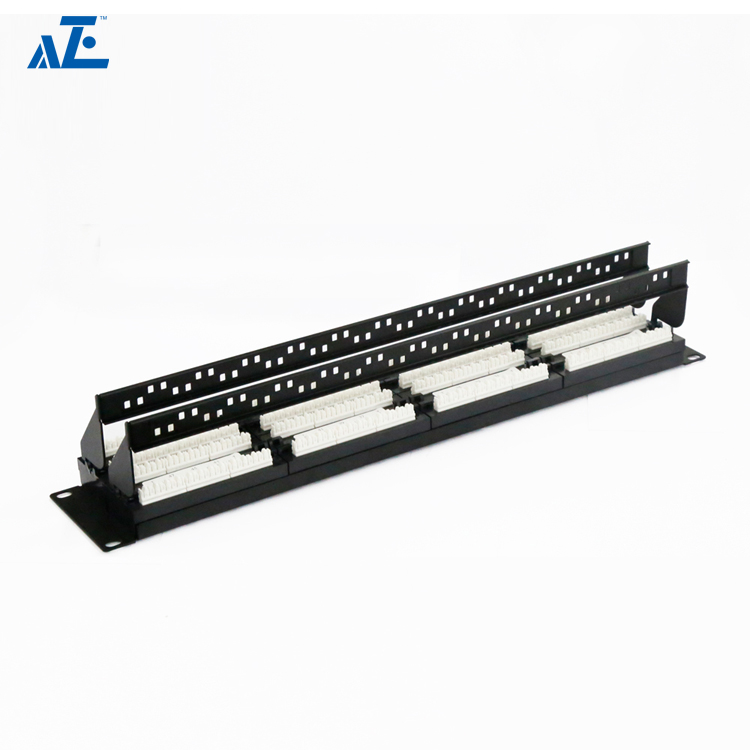

Detachable Rear Strain Relief Bars Help Support and Manage Cables

Specification

Category	Cat6	No. of Ports	48
Shielding Type	Unshielded	No. of Rack Spaces	2U
Material	SPCC + ABS Plastics	Color	Black

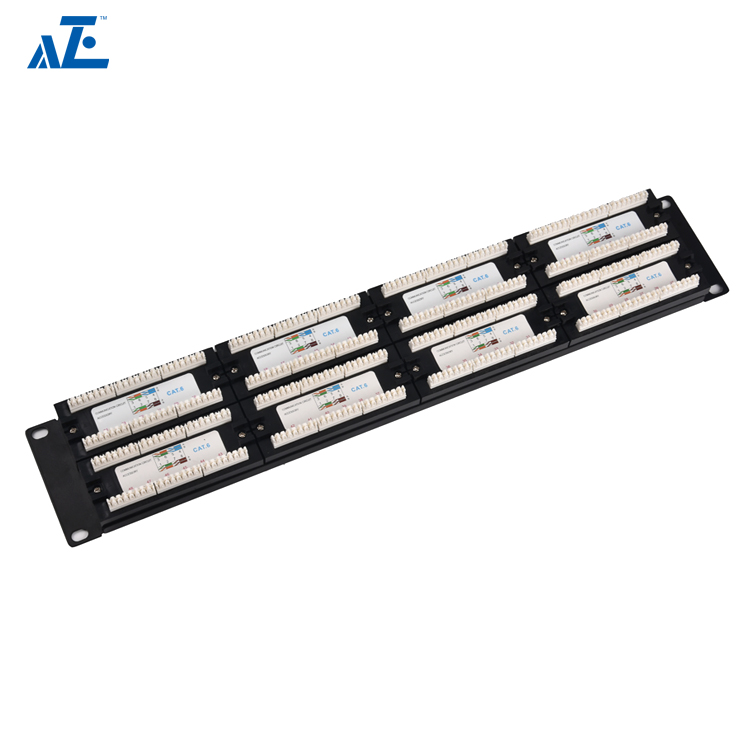

Termination	110 Type Punchdown	Wiring Scheme	T568A/T568B
Type of Patch Panel	Flat	Dimensions (HxWxD)	3.46"x19"x1.2"(88x482.5x30.5mm)

Package Includes

Patch Panel
Mounting Hardware

How to Order

Model	Description
C3PANEL1U25	19 in. 1U 25-Port Cat3 Rackmount Voice Patch Panel
C3PANEL1U50	19 in. 1U 50-Port Cat3 Rackmount Voice Patch Panel
C5EPANEL12WM	Cat5E Mini Patch Panel 12-Port,Vertical
C5EPANEL1U24	19 in. 1U UTP Cat5E Patch Panel, 24-Port
C5EPANEL2U48	19 in. 2U UTP Cat5E Patch Panel, 48-Port
C5EPANEL1U24FTP	19 in. 1U FTP Cat5E Patch Panel, 24-Port
C5EPANEL2U48FTP	19 in. 2U FTP Cat5E Patch Panel, 48-Port
C6PANEL12WM	Cat6 Mini Patch Panel 12-Port ,Vertical
C6PANEL1U24	19 in. 1U UTP Cat6 Patch Panel, 24-Port
C6PANEL2U48	19 in. 2U UTP Cat6 Patch Panel, 48-Port
C6PANEL1U24FTP	19 in. 1U FTP Cat6 Patch Panel, 24-Port
C6PANEL2U48FTP	19 in. 2U FTP Cat6 Patch Panel, 48-Port
PANELB1U24	19 in. 1U Unloaded Patch Panel, 24-Port
PANELB1U24FTP	19 in. 1U Unloaded Patch panel, 24-Port
PANELB1U48FTP	19 in. 1U Unloaded Patch panel, 48-Port

AZE provides a wide range of server rack accessories including airflow management,cable management,rack shelves and rack cooling fans, they are compatablity with rack enclosures, wall mount enclosures, open frame racks and outdoor enclosures.
White (RAL7035) or black(RAL9005) options
