Model:RAFSHELF1U26

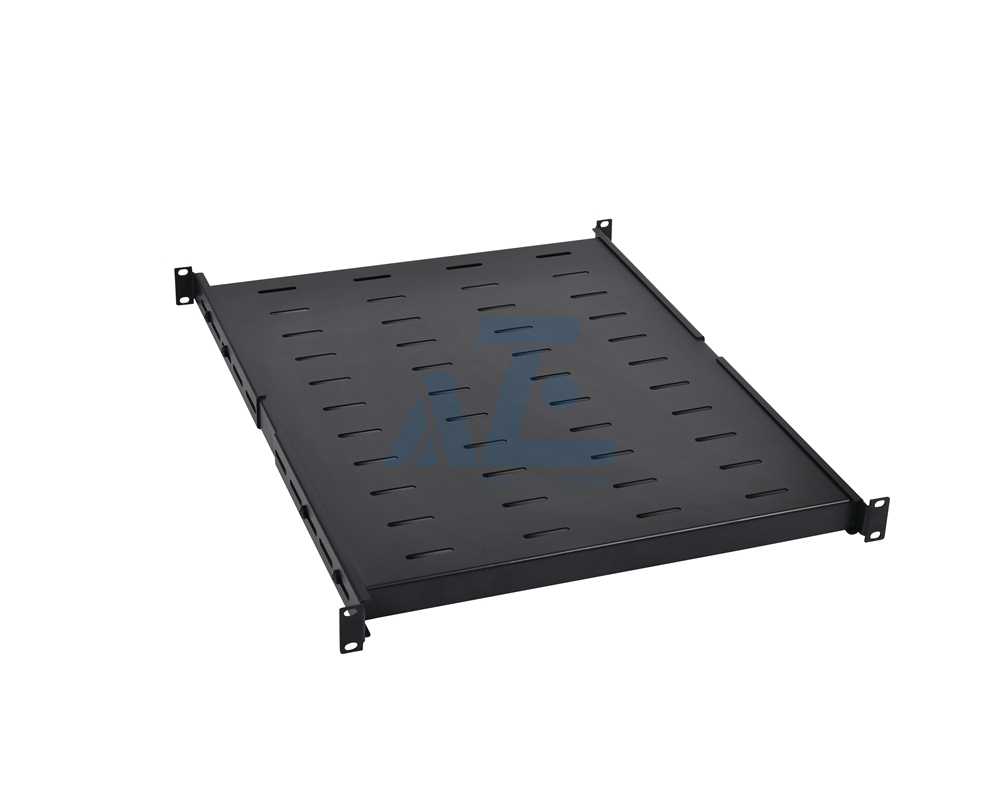

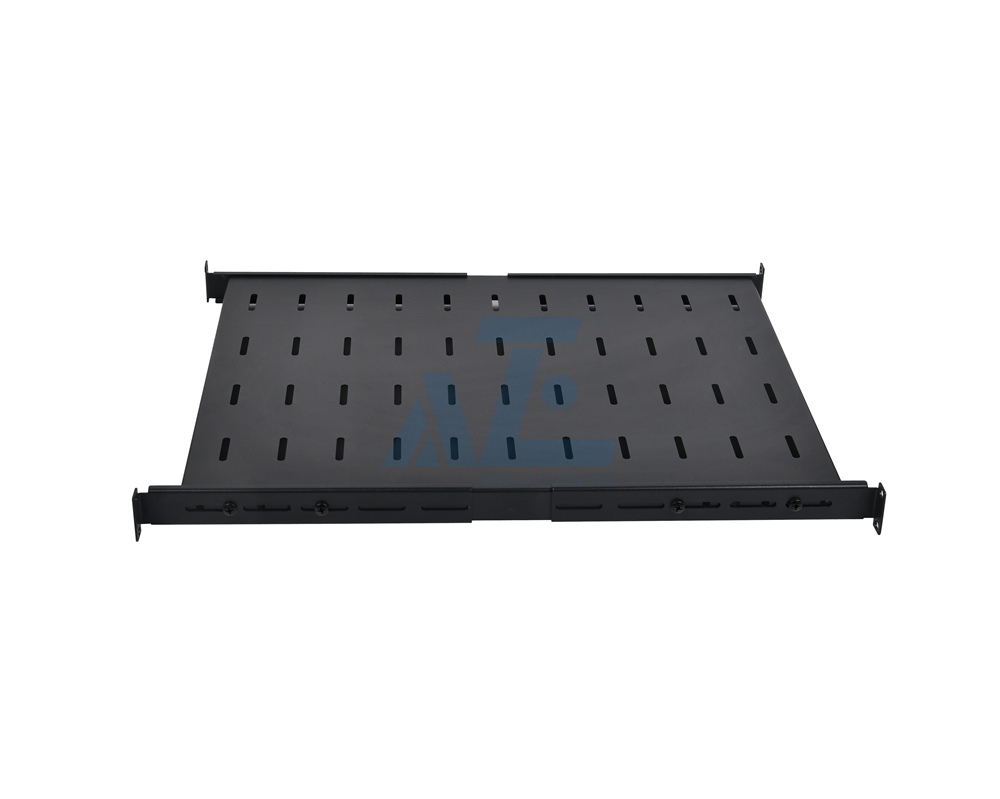

Heavy duty 1U shelf with an adjustable mounting depth from 25.6″ to 32.7″ that can support up to 175 lbs of equipment without rack mounts. Compatible with RS- series server racks. Required mounting hardware is included.

  • Designed for 4 post rack mounting
  • Accommodates tower units, monitors, and other equipment
  • Cold rolled steel with black finish
  • Required mounting hardware included



Overview

1U depth adjustable fixed shelf for server rack enclosure-26inch

RAFSHELF1U26 Features

Key Features 　
Rack Height 1U
Rack Mounting Width 19"

Fixed shelf to enable the mounting of tower units, monitors, and other equipment into the rack environment.

Includes: M6 Mounting hardware



Features & Benefits

  • East to install
  • Adjustable mounting depth
  • Ventilated on the shelf

Specification

Physical 　
Color Black
Unit Dimensions (WxDxH) 19.02inches x 1.69inchesx25.59inches
Unit Weight 12.1lbs.
Shipping Dimensions(WxDxH) 20.3inchesx 2inches x26.4inches
Shipping Weight  13.8lbs.
　 　
Certifications 　
Approvals EIA/ECA-310-E, RoHS
Safety CE
　 　
Warranty 　
Standard warranty 1 Year

How to Order

Model Dimension(H x D) Description Compatibility
Rack Enclosures Wall Mount Enclosures 2-Post (4-Post) Open Frame Racks
RALDRAWER1U14 1U x 350mm 1U Locking Rack-Mount Storage Drawer, 14 inch Deep √ √ √
RALDRAWER2U14 2U x 350mm 2U Locking Rack-Mount Storage Drawer, 14 inch Deep √ √ √
RALDRAWER3U14 3U x 350mm 3U Locking Rack-Mount Storage Drawer, 14 inch Deep √ √ √
RALDRAWER4U14 4U x 350mm 4U Locking Rack-Mount Storage Drawer, 14 inch Deep √ √ √
RACSHELF1U6 1U x 150mm 1U Cantilever Fixed Shelf, 6 inch Deep √ √ √
RACSHELF1U8 1U x 200mm 1U Cantilever Fixed Shelf, 8 inch Deep √ √ √
RACSHELF1U10 1U x 250mm 1U Cantilever Fixed Shelf, 10 inch Deep √ √ √
RACSHELF1U12 1U x 300mm 1U Cantilever Fixed Shelf, 12 inch Deep √ √ √
RACSHELF1U14 1U x 350mm 1U Cantilever Fixed Shelf, 14 inch Deep √ √ √
RACSHELF1U6S 1U x 150mm 1U Cantilever Fixed Shelf, 6 inch Deep, Solid Steel √ √ √
RACSHELF1U12S 1U x 300mm 1U Cantilever Fixed Shelf, 12 inch Deep, Solid Steel √ √ √
RACSHELF1U16S 1U x 400mm 1U Cantilever Fixed Shelf, 16 inch Deep, Solid Steel √ √ √
RACSHELF2U10 2U x 250mm 2U Cantilever Fixed Shelf, 10 inch Deep √ √ √
RACSHELF2U14 2U x 350mm 2U Cantilever Fixed Shelf, 14 inch Deep √ √ √
RACSHELF2U16 2U x 400mm 2U Cantilever Fixed Shelf, 16 inch Deep √ √ √
RACMSHELF2U20S 2U x 500mm 2U Cantilever Center Weighted Fixed Shelf, 20 inch Deep 　 　 2-Post
RAFSHELF1U22 1U x 550mm 1U Heavy-Duty Depth-Adjustable Fixed Shelf, 22 inch Deep √ 　 4-Post
RAFSHELF1U26 1U x 650mm 1U Heavy-Duty Depth-Adjustable Fixed Shelf, 26 inch Deep √ 　 　
RAFSHELF1U30 1U x 750mm 1U Heavy-Duty Depth-Adjustable Fixed Shelf, 30 inch Deep √ √ 　
RASHELF4P1U14 1U x 350mm 1U 4-Point Rack-Mount Fixed Shelf, 14 inch Deep 　 √ 　
RASHELF4P1U18 1U x 450mm 1U 4-Point Rack-Mount Fixed Shelf, 18 inch Deep √ √ 　
RASHELF4P1U22 1U x 550mm 1U 4-Point Rack-Mount Fixed Shelf, 22 inch Deep √ 　 　
RASHELF4P1U26 1U x 650mm 1U 4-Point Rack-Mount Fixed Shelf, 26 inch Deep √ 　 　
RASSHELF1U14 1U x 350mm 1U Depth-Adjustable Sliding Shelf, 14 inch Deep 　 √ 　
RASSHELF1U18 1U x 450mm 1U Depth-Adjustable Sliding Shelf, 18 inch Deep √ √ 　
RASSHELF1U22 1U x 550mm 1U Depth-Adjustable Sliding Shelf, 22 inch Deep √ 　 4-Post
RASSHELF1U26 1U x 650mm 1U Depth-Adjustable Sliding Shelf, 26 inch Deep √ 　 　
RASSHELF1U30 1U x 750mm 1U Depth-Adjustable Sliding Shelf, 30 inch Deep √ 　 　
RASHELF1U18 1U x 450mm 1U Side Rack-Mounted Sliding Shelf, 18 inch Deep √ 　 　
RASHELF1U22 1U x 550mm 1U Side Rack-Mounted Sliding Shelf, 22 inch Deep √ 　 　
RASHELF1U26 1U x 650mm 1U Side Rack-Mounted Sliding Shelf, 26 inch Deep √ 　 　
