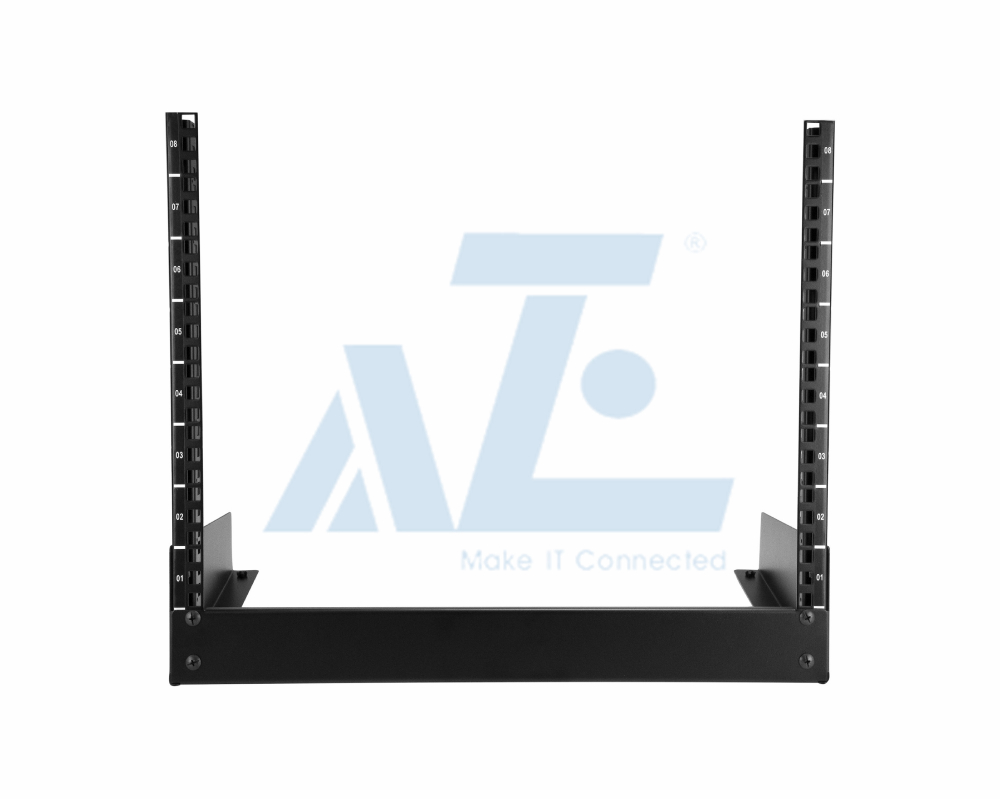

12U 19 in. 2-Post Open Frame Desktop Rack
Model:ROF2P12D
This 2-post desktop rack provides 12U of storage space for mounting smaller A/V and IT equipment.
- 12U Open frame design
- Secure the rack directly to the floor or rolling with casters.
- Secures 12U of 19 in. rack equipment up to 36 in. deep
- Easy to assemble with included hardware
- Free-standing design rests on rubber feet
- Rests on desktop, floor or counter at your immediate workspace
Overview
12U Desktop Rack - 2-Post Open Frame Rack
ROF2P08D Features
| Key Features | |
| Rack Height | 12U |
| Rack Width | 19" |
Includes: Mounting hardware
You can mount equipment at a fraction of the cost of conventional racks with this 2-Post open rack, The lightweight rack is engineered to meet EIA-310 rack-mount standards and is constructed of solid steel, ensuring a sturdy and safe mounting solution for your mission-critical equipment.
Features & Benefits
| Compatiblity | |
| Rack Systems Compatible | Compatible with a variety of AZE's rack accessory products to provide the ability to create a complete rack system |
| EIA-310 19in Rack Mounting Compatibility | Compatibility with all EIA-310 compliant 19" equipment. |
| High capacity cable management systems options | Compatibility with high capacity cable management that can attach to rack mounting rails inside enclosures aligning with U-space marks and provide channels for cabling. |
| Agility | |
| Rack Mount Hole | The mounting hole can be M6 square holes or #12-24 tapped holes |
| Floor mounting or rolling options | Pre-drilled holes to secure the rack directly to the floor or rolling with the 2" heavy duty castors options |
| Flat packed shipping | Easy to assemble and saving cost for shipment |
Specification
| Physical | |
| Color | Black |
| Unit Dimensions (WxDxH) | 23.63inches x 23.63inchesx8U |
| Unit Weight | 50.3lbs. |
| Shipping Dimensions(WxDxH) | 6.3inchesx25.0inches x14.2inches |
| Shipping Weight | 58.2lbs. |
| Weight Capacity (static load) | 100lbs. |
| Environmental | |
| Protection Class | IP20 |
| Certifications | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
How to Order
| MODEL | Dimension | Description |
| ROF2P08D | 503mmW x 300mmD x 8U | 8U 19in Desktop Open Frame 2 Post Rack |
| ROF2P12D | 503mmW x 300mmD x 12U | 12U 19in Desktop Open Frame 2 Post Rack |
| ROF2P13AL | 515mmW x 120mmD x 13U | 2-Post 13U Open Frame Rack,Aluminum,#12-24 Threads |
| ROF2P25AL | 515mmW x 120mmD x 25U | 2-Post 25U Open Frame Rack,Aluminum,#12-24 Threads |
| ROF2P45AL | 515mmW x 120mmD x 45U | 2-Post 45U Open Frame Rack,Aluminum,#12-24 Threads |
*********Notes**********
-
Shipping Option: Flat packed
-
19" vertical rail types options: #10-32 threaded holes, #12-24 threaded holes or M6 square holes
-
A wide range of server rack accessories compatability
-
Different range of wall mount cabinets availablity: glass door wall mount cabinets, honeycomb perforated doors wall mount enclosures, vertical mount enclosures and 10" soho wall mount cabinets.
-
Open frame racks range include: 2 post open frame racks, 4 post open frame racks and open frame wall mount brackets.
-
White or black server rack enclosure , colocation server cabinet, Server Rack PDUs,KVMs and aisle containment solution available.
